SELECT A DIAGRAM

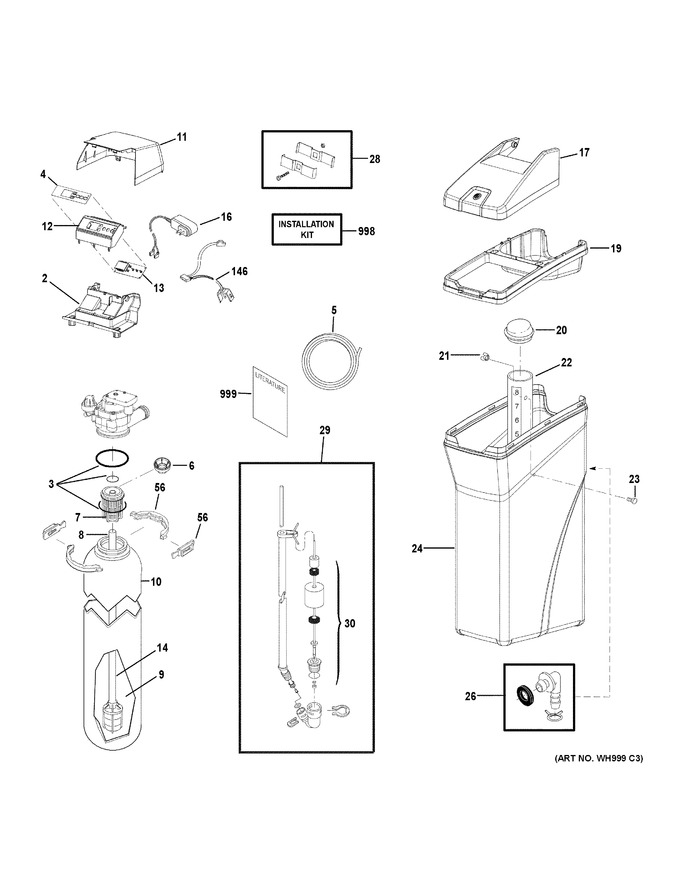

1 - Body Parts


2 - Pump


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WS31X10051		Back Cover		Appelez-nous	-
3	WS35X10001		O-ring Seal Kit				$ 35.65
4	WS34X20963		Decal Faceplate		Appelez-nous	-
5	WS07X10004		Drain Hose-20ft				$ 84.45
6	WS31X10044		Filter Screen		Appelez-nous	-
7	WS14X10002		Distributor Top				$ 43.67
8	WS14X10001		Distributor Bottom   (Replaces: WS14X10005)				$ 238.90
9	WS01X10002		Resin - 1 Cu Ft				$ 263.31
10	WS32X10018		Resin Tank		Appelez-nous	-
11	WS31X10052		Cover, Top		Appelez-nous	-
12	WS34X10021		Faceplate		Appelez-nous	-
13	WS21X20981		Control		Appelez-nous	-
14	WS02X20962		Carbon (bag)		Appelez-nous	-
16	WS26X10013		Transformer W/power Cord				$ 143.84
17	WS31X10053		Cover, Salt Hole W/label		Appelez-nous	-
19	WS33X20961		Rim		Appelez-nous	-
20	WS31X10024		Cvr Brinewell W/ Decal				$ 23.77
21	WS02X10088		Wing Nut 1/4 - 20   (Replaces: WS02X10009)				$ 22.80
22	WS34X10025		Brinewell W/ Decal		Appelez-nous	-
23	WS02X10088		Screw Kit, Brine Tank				$ 22.80
24	WS32X10032		Tank,brine		Appelez-nous	-
26	WS22X10063		Overflow Adapter Kit		Appelez-nous	-
28	WS35X10035		Ground Clamp Kit		Appelez-nous	-
29	WS15X10077		Brine Valve Asm				$ 121.38
30	WS35X10063		Float, Stem & Guide				$ 127.80
56	WS28X10078		Tank Neck Clamp Kit				$ 42.39
146	WS28X10018		Harness Wire, Sensor Asm		Appelez-nous	-
998	WS35X10065		Installation Kit		Appelez-nous	-
999	49-50295		Pm Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
