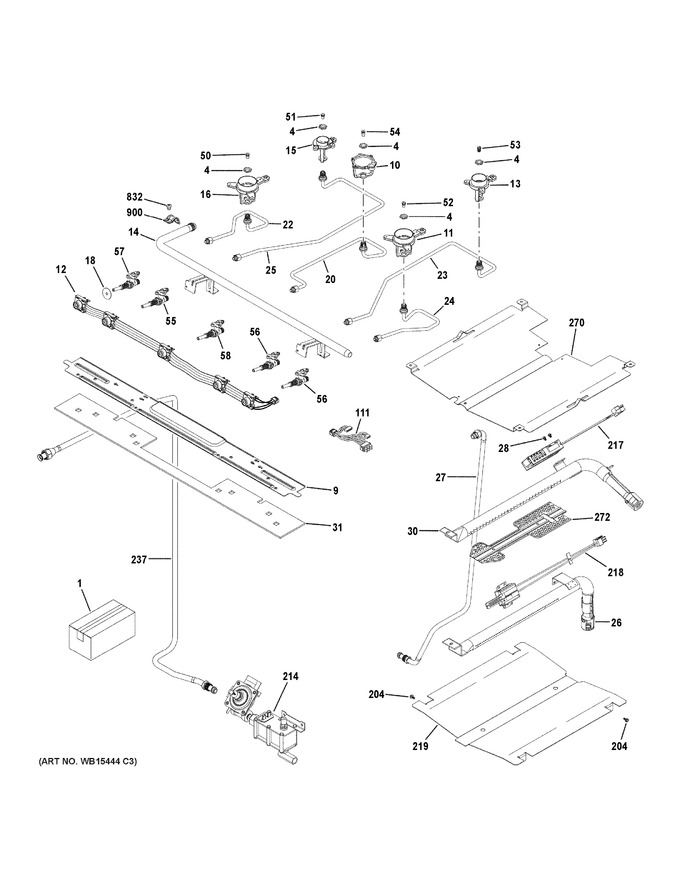

1 - Gas & Burner Parts
2 - Control Panel & Cooktop
3 - Body Parts
4 - Door & Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB49X25442 | Lp Kit High Altitude Asm |
|
- | |||||
| 1 | 31-17174 | Pm Mini Manual |
|
- | |||||
| 1 | 49-85224 | Pm Gas Quick Guide |
|
- | |||||
| 1 | WB49X25441 | Ng Kit High Altitude Asm |
|
- | |||||
| 1 | 31-10990 | Lp Conversion Inst |
|
- | |||||
| 1 | WB28X24757 | Kit Lp Conversion Asm |
|
- | |||||
| 1 | 31-10998 | Pm Install Instructions |
|
- | |||||
| 4 | WS01A01130 | Economic Nut (Replaces: WB01K10037) |
|
Immediately | $ 16.28 | ||||
| 9 | WB02K10272 | Manifold Support |
|
- | |||||
| 10 | WS01A00976 | Ckt Bracket Small (Replaces: WB02K10360) |
|
$ 11.42 | |||||
| 11 | WB02X24727 | Injet, Medium V2 |
|
- | |||||
| 12 | WB18X23202 | Switches & Harness |
|
- | |||||
| 13 | WB02X24726 | Injet, Large V2 |
|
- | |||||
| 14 | WB28X24765 | Manifold Pipe |
|
- | |||||
| 15 | WB02X24728 | Injet, Small V2 |
|
- | |||||
| 16 | WB02X24725 | Injet, Xl V2 |
|
- | |||||
| 18 | WB2K24 | Cover Valve |
|
- | |||||
| 20 | WB28X24762 | Orifice Holder Central |
|
- | |||||
| 22 | WB28X24761 | Orifice Holder Rf |
|
- | |||||
| 23 | WB28X24764 | Orifice Holder Rr |
|
- | |||||
| 24 | WB28X24766 | Orifice Holder Rf |
|
- | |||||
| 25 | WB28X24763 | Orifice Holder Lr |
|
- | |||||
| 26 | WS01F06053 | Burner Bake (Replaces: WB16X20463) |
|
$ 50.52 | |||||
| 27 | WB28X24773 | Tube Burner Supply |
|
- | |||||
| 28 | WB1K50 | Screw Mtg Igniter |
|
- | |||||
| 30 | WB16K10086 | Burner Broil |
|
- | |||||
| 31 | WB35X24985 | Insulation Burner Box |
|
- | |||||
| 50 | WB28X24768 | Orifice Spud |
|
- | |||||
| 51 | WS01F01338 | Orifice Spud Lp (Replaces: WB28K10834) |
|
Immediately | $ 3.97 | ||||
| 52 | WS01F01389 | Orifice-lp 89mm (Replaces: WB28K10023) |
|
$ 3.97 | |||||
| 53 | WS01F01390 | Orifice-lp Lg 99mm (Replaces: WB28K10032) |
|
$ 12.71 | |||||
| 54 | WS01F01422 | Orifice Spud Lp 86l (Replaces: WB28K10215) |
|
$ 12.71 | |||||
| 55 | WS01F05939 | Valve Burner 270 (Replaces: WB21X20261) |
|
$ 57.25 | |||||
| 56 | WS01F05938 | Valve Burner 270 (Replaces: WB21X20260) |
|
Immediately | $ 22.53 | ||||
| 57 | WB21X20262 | Valve Burner 270 |
|
- | |||||
| 58 | WB21X20394 | Valve Burner 270 |
|
- | |||||
| 111 | WB18X26981 | Electrodes & Harness H.v |
|
- | |||||
| 204 | WS01A00654 | Screw (blk) (Replaces: WB1K42) |
|
$ 15.88 | |||||
| 214 | WS01F06400 | Valve Control Asm Nor. D (Replaces: WB21X21506) |
|
$ 278.27 | |||||
| 217 | WB13X24755 | Igniter Glowbar |
|
- | |||||
| 218 | WS01F10365 | Igniter Glowbar (Replaces: WB13X25500) |
|
Immediately | $ 163.13 | ||||
| 219 | WB49K44 | Flame Spreader |
|
- | |||||
| 237 | WB28X24772 | Tube Manifold Supply |
|
- | |||||
| 270 | WB49K10025 | Deflector |
|
- | |||||
| 272 | WB34X20303 | Shield Broil |
|
- | |||||
| 832 | WB01K10080 | Screw Thermostat |
|
- | |||||
| 900 | WB02K10297 | Bracket Valve |
|
- |
