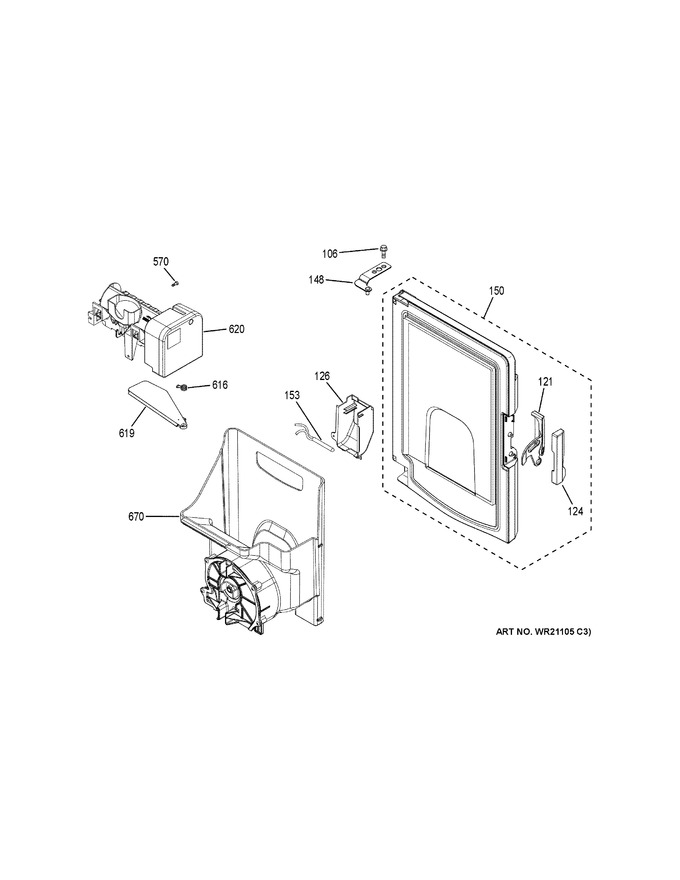

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
106	WR01X11054		Scr 8-18 Flp 1/2 S		Appelez-nous	-
121	WR11X10031		Latch Icebox Door		Appelez-nous	-
124	WR02X23032		Cover Latch		Appelez-nous	-
126	WR17X13067		Cover Am Im Harness		Appelez-nous	-
148	WR13X10972		Hinge Top Door Icebox		Appelez-nous	-
150	WR78X25914		Door Icebox Foam Asm		Appelez-nous	-
153	WR55X11142		Sensor Temperature		Appelez-nous	-
570	WR1X1757		Scr 8-18 Hxw 1 1/4s		Appelez-nous	-
616	WR29X10112		Spring Feeler Arm		Appelez-nous	-
619	WR29X10110		Arm Feeler Im		Appelez-nous	-
620	WG03F07552		Ice Maker Asm-for Door   (Replaces: WR30X10160)			Immediately	$ 184.41
670	WR30X10174		Ice Bucket & Crusher		Appelez-nous	-
