10 - Case Parts


11 - Machine Compartment


1 - Dispenser Door


2 - Freezer Door


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Beverage Dispenser


8 - Fresh Food Section


9 - Fresh Food Shelves

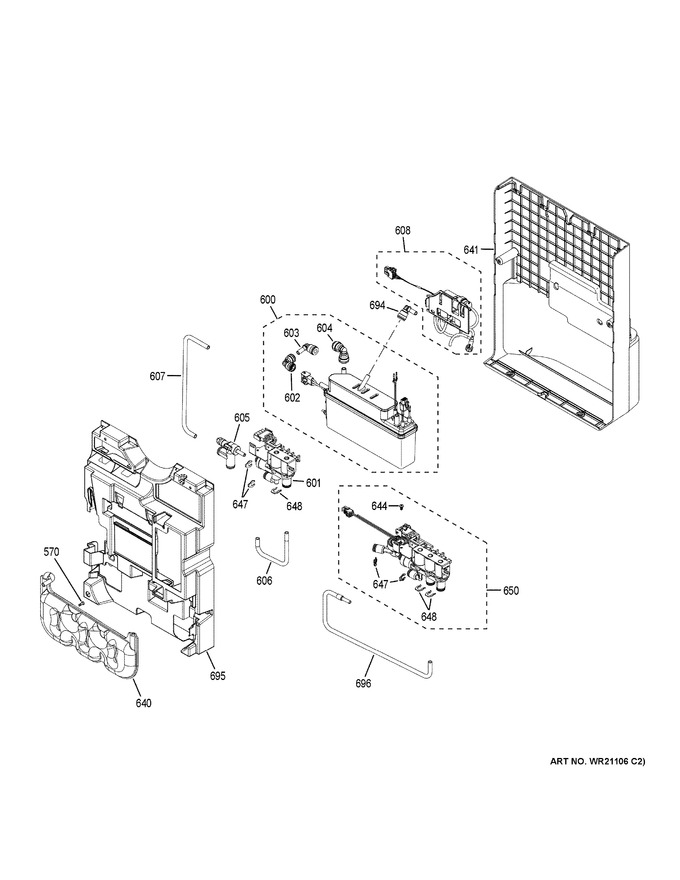

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
570	WR1X1757		Scr 8-18 Hxw 1 1/4s		Appelez-nous	-
600	WR17X25782		Single Serve Hot Water Tank		Appelez-nous	-
601	WG03F01814		Valve Dual Water   (Replaces: WR57X10098)			Immediately	$ 118.98
602	WR02X13753		Connector 90 Deg 5/16 Ht		Appelez-nous	-
603	WR02X13754		Connector 5/16 Stem Ht		Appelez-nous	-
604	WR02X13755		Connector 90 3/8-5/16 Ht		Appelez-nous	-
605	WR01X24982		Control Flow Ss Asm		Appelez-nous	-
606	WR01X24987		Tube Ss Fc To Vlc		Appelez-nous	-
607	WR01X24990		Tube Ss Fc To Hw Tank		Appelez-nous	-
608	WR57X25783		Bracket Pump & Valve Asm		Appelez-nous	-
640	WR17X24972		Tank Cold Water Asm		Appelez-nous	-
641	WR02X25186		Cover Valve And Tank		Appelez-nous	-
644	WR01X11019		Scr M4x1.59 Mch P 10mm S		Appelez-nous	-
647	WR01X11041		Quick Clip Connector 1/4		Appelez-nous	-
648	WR01X11040		Quick Clip Conn 5/16		Appelez-nous	-
650	WR57X25390		Tri Dummy Valve W Fm Asm		Appelez-nous	-
694	WR02X24977		Connector 5/16 Stem Ht		Appelez-nous	-
695	WR13X25912		Housing Tray Valve Tank		Appelez-nous	-
696	WR01X24985		Tube Ss Vlv To Vlv		Appelez-nous	-
