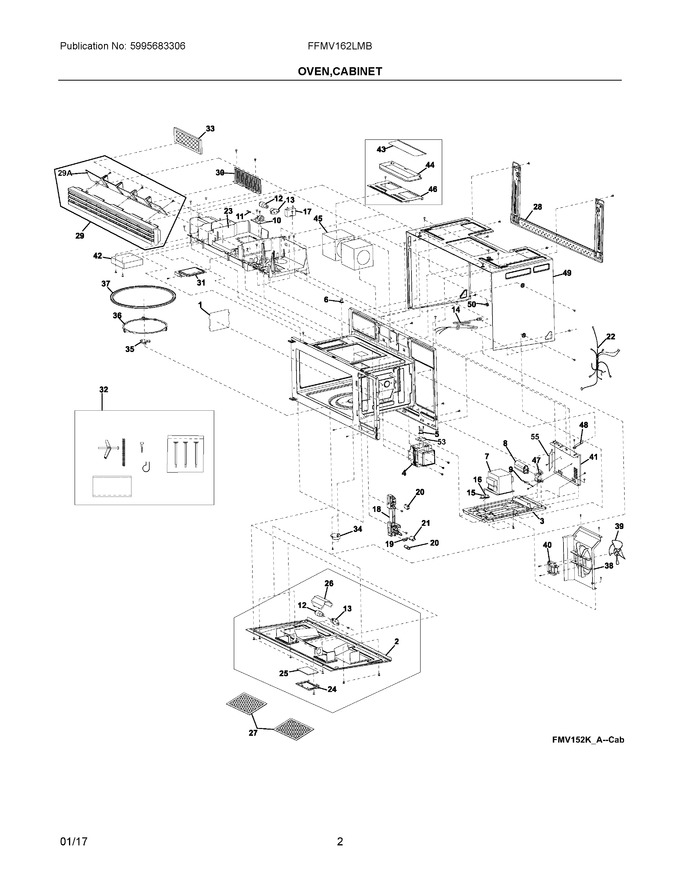

02 - Oven, Cabinet
03 - Control Panel, Door, Misc
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304509435 | Cover, Waveguide (Replaces: 5304464061) |
|
Immediately | $ 15.27 | ||||
| 2 | 5304481486 | Cover, Unit Base |
|
$ 241.29 | |||||
| 3 | 5304507077 | Base, Transformer, Right Side |
|
- | |||||
| 4 | 5304464072 | Magnetron, High Voltage (Replaces: 5304472445) |
|
Immediately | $ 314.39 | ||||
| 5 | 5304509469 | Thermostat (Replaces: 5304464073) |
|
Immediately | $ 24.20 | ||||
| 6 | 5304509449 | Thermostat, Cutout, Oven Cavity (Replaces: 5304464074) |
|
Immediately | $ 24.10 | ||||
| 7 | 5304515184 | Transformer, Power, Hv (Replaces: 5304464075) |
|
Immediately | $ 470.01 | ||||
| 8 | 5304528930 | Capacitor, High Voltage (Replaces: 5304464253) |
|
$ 73.90 | |||||
| 9 | 5304509479 | Diode, High Voltage (Replaces: 5304472472) |
|
$ 31.44 | |||||
| 10 | 5304509452 | Filter, Noise, Electronic (Replaces: 5304472447) |
|
Immediately | $ 87.07 | ||||
| 11 | 5304509451 | Fuse (Replaces: 5304488359) |
|
Immediately | $ 14.45 | ||||
| 12 | 5304461116 | Lamp, Light Bulb (Replaces: 5304464090) |
|
Immediately | $ 49.93 | ||||
| 13 | 5304464091 | Lampholder, Socket |
|
Immediately | $ 73.03 | ||||
| 14 | 5304512501 | Power Cord, Electric (Replaces: 5304464890) |
|
$ 118.08 | |||||
| 15 | 5304509474 | Thermostat, Cutout, Transformer (Replaces: 5304464093) |
|
Immediately | $ 23.30 | ||||
| 16 | 5304509475 | Thermostat, Cutout, Vent Motor (Replaces: 5304464094) |
|
Immediately | $ 21.69 | ||||
| 17 | 5304502494 | Capacitor, Start |
|
$ 119.39 | |||||
| 18 | 5304509457 | Latch Hook (Replaces: 5304499580) |
|
Immediately | $ 48.65 | ||||
| 19 | 5304509458 | Lever, Switch (Replaces: 5304464097) |
|
Immediately | $ 11.30 | ||||
| 20 | 5304509460 | Switch, Interlock (Replaces: 5304464099) |
|
Immediately | $ 59.18 | ||||
| 21 | 5304509459 | Switch, Monitor (Replaces: 5304464098) |
|
Immediately | $ 34.27 | ||||
| 22 | 5304464100 | Wiring Harness, Main |
|
$ 310.43 | |||||
| 23 | 5304464101 | Duct, Air |
|
$ 185.59 | |||||
| 24 | 5304481505 | Frame, Lens Holder |
|
$ 77.92 | |||||
| 25 | 5304464103 | Lens, Cooktop Lamp, Glass |
|
$ 39.53 | |||||
| 26 | 5304464104 | Cover, Lamp |
|
$ 59.27 | |||||
| 27 | 5304509444 | Filter, Grease, Washable (Replaces: 5304478913) |
|
Immediately | $ 92.41 | ||||
| 28 | 5304509487 | Plate, Mounting, Rear (Replaces: 5304488426) |
|
Immediately | $ 66.25 | ||||
| 29 | 5304472493 | Grille Assy, Exhaust, Silver (Replaces: 5304472492) |
|
$ 358.10 | |||||
| 30 | 5304464256 | Cover, Control Shield, Right |
|
$ 64.16 | |||||
| 31 | 5304464111 | Cover, Lamp, Oven Cavity |
|
- | |||||
| 32 | 5304503192 | Mounting Kit, With Templates (Replaces: 5304492620) |
|
$ 126.95 | |||||
| 33 | FRPAMRAF | Filter, Charcoal, 2" X 10 (Replaces: 5304464577) |
|
Immediately | $ 42.07 | ||||
| 34 | 5304509440 | Motor, Turntable (Replaces: 5304464113) |
|
Immediately | $ 131.25 | ||||
| 35 | 5304509622 | Coupler, Turntable/motor (Replaces: 5304472494) |
|
$ 23.35 | |||||
| 36 | 5304509438 | Support, Turntable Ring (Replaces: 5304464115) |
|
$ 58.00 | |||||
| 37 | 5304509621 | Turntable, Tray, Glass (Replaces: 5304464116) |
|
Immediately | $ 177.73 | ||||
| 38 | 5304464117 | Duct, Cooling Fan |
|
$ 63.53 | |||||
| 39 | 5304509473 | Fan Blade, Cooling Fan (Replaces: 5304464257) |
|
$ 17.19 | |||||
| 40 | 5304464118 | Motor, Cooling Fan |
|
$ 214.89 | |||||
| 41 | 5304472451 | Duct, Hood Intake, Right Side |
|
- | |||||
| 42 | 5304472452 | Vent, Air Outlet |
|
$ 105.81 | |||||
| 43 | 5304509486 | Damper, Door, Exhaust Adapter (Replaces: 5304464119) |
|
Immediately | $ 37.62 | ||||
| 44 | 5304509485 | Frame, Damper Housing, Exhaust Adapter (Replaces: 5304464120) |
|
Immediately | $ 32.14 | ||||
| 45 | 5304491613 | Motor, Hood/vent Fan |
|
$ 475.04 | |||||
| 46 | 5304472453 | Cover, Vent Motor |
|
$ 167.95 | |||||
| 47 | 5304464123 | Retainer, Capacitor Strap |
|
- | |||||
| 48 | 5304464124 | Spacer |
|
- | |||||
| 49 | 5304472455 | Cabinet, Outer Casing, Black |
|
- | |||||
| 50 | 5304509436 | Mounting Nut Kit (Replaces: 5304502503) |
|
Immediately | $ 16.34 | ||||
| 53 | 5304472439 | Bracket, Thermostat |
|
$ 18.43 | |||||
| 55 | 5304472454 | Vent, Air, Magnetron |
|
$ 62.79 | |||||
| 29A | 5304472493 | Louver, Vent (Replaces: 5304472495) |
|
$ 358.10 | |||||
| NI | 5304472496 | Screw Kit, Black |
|
$ 71.56 |
