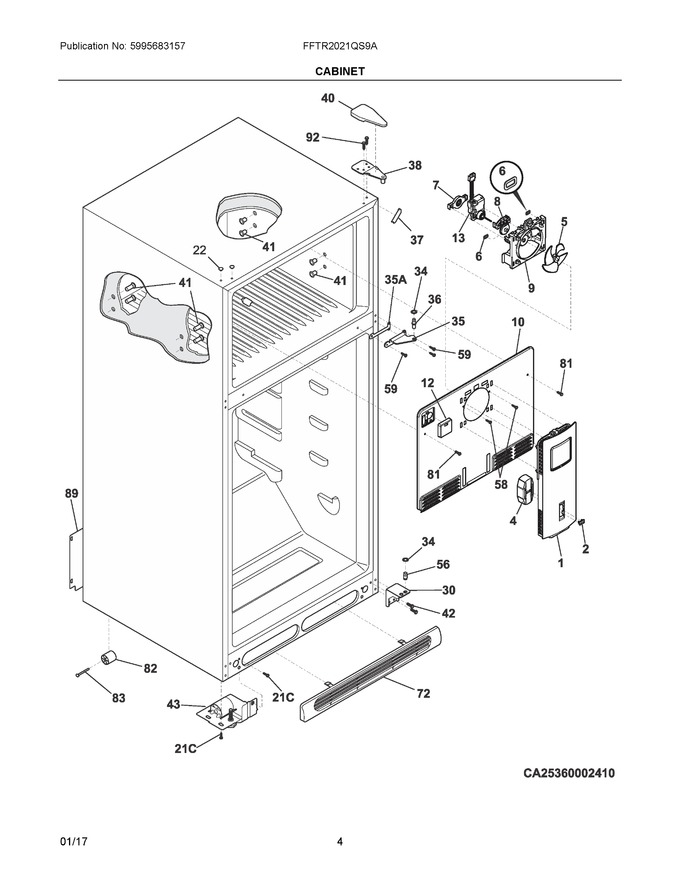

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242294703 | Cover Assembly, Fan, W/damper-knob |
|
- | |||||
| 2 | 242249002 | Knob, Sliding, Damper (Replaces: 242229401) |
|
Immediately | $ 235.46 | ||||
| 4 | 242294704 | Damper, Fan Cover (Replaces: 242229501) |
|
$ 111.64 | |||||
| 5 | 242219302 | Fan Blade, Evaporator |
|
Immediately | $ 19.38 | ||||
| 6 | 5304497413 | Ring, Locking, (2) |
|
Immediately | $ 5.90 | ||||
| 7 | 242287501 | Grommet, Evaporator Fan, Rear |
|
Immediately | $ 19.69 | ||||
| 8 | 242237301 | Grommet, Evaporator Fan, Front |
|
$ 19.38 | |||||
| 9 | 242229301 | Shroud Bracket, Evaporator Fan |
|
Immediately | $ 33.86 | ||||
| 10 | 242239404 | Cover, Evaporator Coil, 21' |
|
$ 80.06 | |||||
| 12 | 242249201 | Cover, Connection, Ice Maker |
|
$ 18.21 | |||||
| 13 | 242077705 | Motor, Evaporator Fan, Blower (Replaces: 242077702) |
|
Immediately | $ 158.08 | ||||
| 22 | 215774918 | Plug-button, Black, Upr Hinge Holes |
|
$ 10.95 | |||||
| 28 | 5304499445 | Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special (Replaces: 240335502) |
|
Immediately | $ 34.81 | ||||
| 30 | 240314011 | Bracket-lower Hinge, Black (Replaces: 240314003) |
|
Immediately | $ 85.84 | ||||
| 34 | 240311303 | Washer, Hinge, Nylon, (2) |
|
Immediately | $ 11.80 | ||||
| 35 | 240313803 | Bracket-ctr Hinge, Black |
|
$ 178.76 | |||||
| 36 | 240516402 | Pin-center Hinge |
|
- | |||||
| 37 | 242161202 | Trim-cabinet Corner, Black, (2) |
|
Immediately | $ 8.66 | ||||
| 38 | 240313703 | Bracket-upper Hinge |
|
Immediately | $ 35.86 | ||||
| 40 | 240354404 | Cover-upper Hinge, Black |
|
$ 68.40 | |||||
| 41 | 5304500407 | Grommet, Shelf Mtg |
|
Immediately | $ 7.09 | ||||
| 42 | 240578902 | Screw, Hex Head, 1/4-20 X 5/8 |
|
Immediately | $ 15.75 | ||||
| 43 | 5304499445 | Roller Assy, Adjustable, Front, (2) (Replaces: 240335005) |
|
Immediately | $ 34.81 | ||||
| 56 | 240516502 | Pin-lower Hinge |
|
$ 80.89 | |||||
| 58 | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 16.85 | |||||
| 59 | 240442707 | Screw-#10-32 X 3/4, Black |
|
Immediately | $ 3.15 | ||||
| 72 | 241839407 | Grille/kickplate, Black |
|
Immediately | $ 65.36 | ||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 82 | 240335202 | Roller, Compressor Base, Rear |
|
$ 23.63 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 39.27 | ||||
| 89 | 241733911 | Cover-access, W/label |
|
$ 56.12 | |||||
| 92 | 241710601 | Screw-hinge Mtg, Hex Head, 1/4-20 X 1.00 (Replaces: 241624301) |
|
$ 14.96 | |||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 35A | 240336803 | Spacer-hinge, Center, Black |
|
$ 12.60 | |||||
| 92A | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg |
|
$ 14.96 | |||||
| NI | 240494001 | Plug-button, White, Cab Liner Holes |
|
Immediately | $ 20.22 | ||||
| NI | 218990901 | Clip-wire |
|
$ 82.69 | |||||
| NIA | 218515401 | Clip-grille |
|
$ 19.69 | |||||
| NIA | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 5.06 | ||||
| NIA | 240568606 | Seal-coil Cover |
|
$ 14.18 | |||||
| NIA | 241586701 | Plug, Round, Foam, Ice Maker, Water Inlet |
|
$ 19.69 | |||||
| NIB | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50, (2) (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| NIC | 5304521789 | Harness, Wiring, Freezer Section, W/defrost Therm (Replaces: 242213502) |
|
Immediately | $ 105.72 | ||||
| NID | 5304523788 | Harness, Wiring, Frzr Section (Replaces: 5304503321) |
|
Immediately | $ 42.84 |
