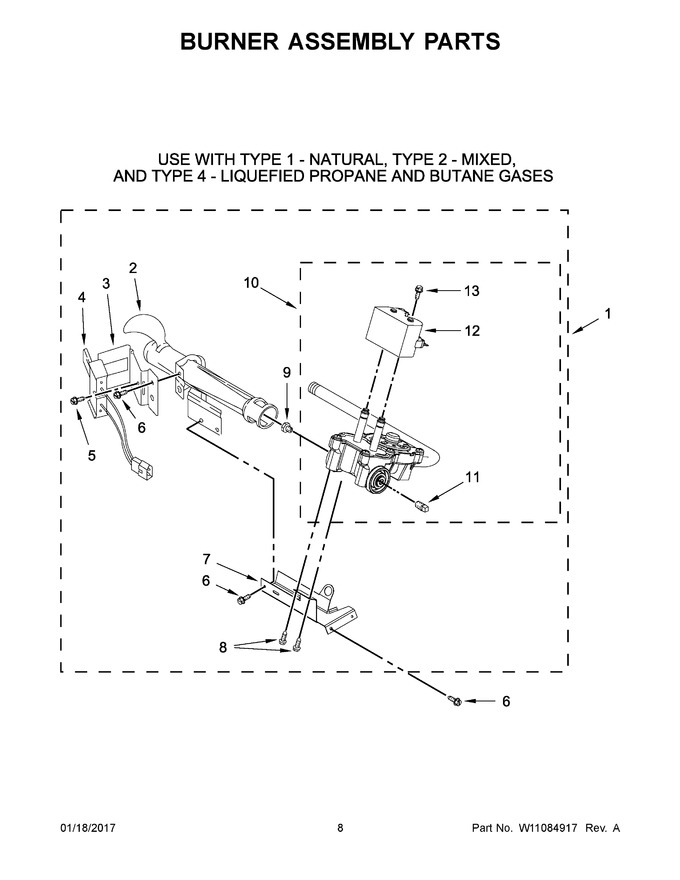

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10834554		Burner Assembly (50 Hz) (type 1 And 2)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 188.87
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw   (Replaces: W10366705)				$ 7.88
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
7	693986		Base, Burner		Appelez-nous	-
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
9	WP234826		Orifice, Burner (type 1 (natural))   (Replaces: 234826)				$ 39.27
10	W10622161		Valve, Gas		Appelez-nous	-
11	W10295523		Pipe Plug		Appelez-nous	-
12	W11818018		Coil, 50 Hz.   (Replaces: W10340251)		Appelez-nous	-
13	326049536		Screw		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	49572A		Conversion Kit (type 1 And 2) To Type (4) L.p.g.			Immediately	$ 36.19
