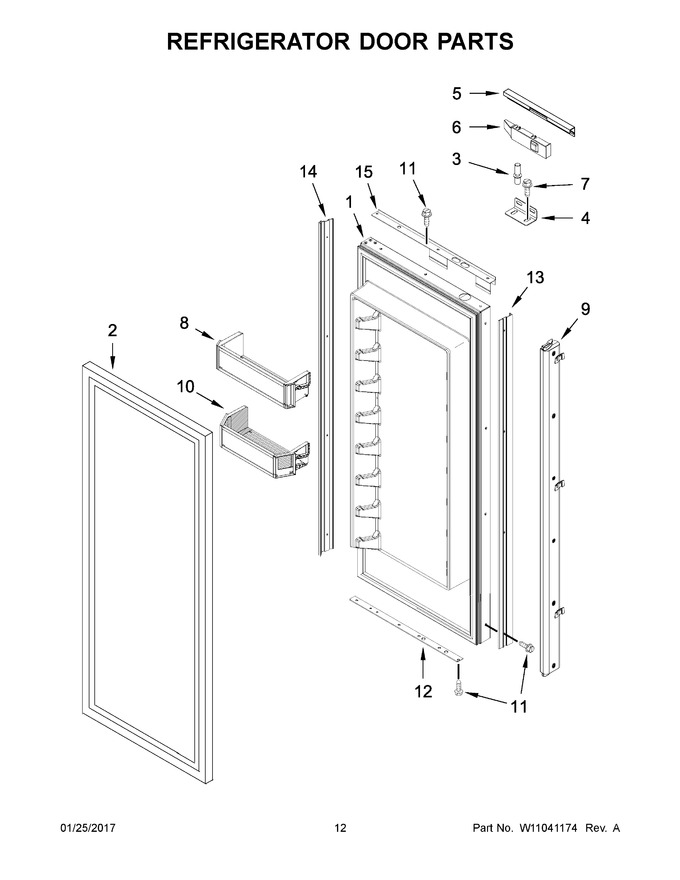

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827066		Door, Refrigerator (includes Item 2) (left Hand)   (Replaces: W10651536)		Appelez-nous	-
2	W10512745		Gasket, Door (black)		Appelez-nous	-
3	W10234194		Pin, Top Door				$ 17.66
4	W10606841		Bracket, Panel Mounting (grey)				$ 39.81
5	W10582015		Cover, Door (top) Left Hand (grey)		Appelez-nous	-
6	W10606813		Insert, Door Arm Top (grey)			Immediately	$ 36.38
7	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
8	W10578270		Bin, Door (shallow)				$ 371.46
9	W11590870		Assembly, Mullion (grey)   (Replaces: W10732106)				$ 144.28
10	W10578310		Bin, Door (gallon)		Appelez-nous	-
11	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
12	W10564260		Trim, Door (bottom) Left Hand (grey)		Appelez-nous	-
13	W10606806		Trim, Door (handle Side) Left Hand (grey)				$ 289.97
14	W10606803		Trim, Door (hinge Side) (grey)			Immediately	$ 102.29
15	W10564257		Trim, Door (top) Left Hand (grey)		Appelez-nous	-
12A	W10564267		Trim, Door (bottom) Right Hand (grey)		Appelez-nous	-
13A	W10606802		Trim, Door (handle Side) Right Hand (grey)				$ 115.42
15A	W10564262		Trim, Door (top) Right Hand (grey)		Appelez-nous	-
1A	W11827079		Door, Refrigerator (includes Item 2) (right Hand)   (Replaces: W10651537)				$ 811.88
5A	W10726561		Cover, Door (top) Right Hand (grey)			Immediately	$ 164.88
6A	W10606814		Insert, Door Arm Bottom (grey)				$ 34.47
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10772222		Mat, Door Bin		Appelez-nous	-
