01 - Cover Sheet


02 - Control Panel

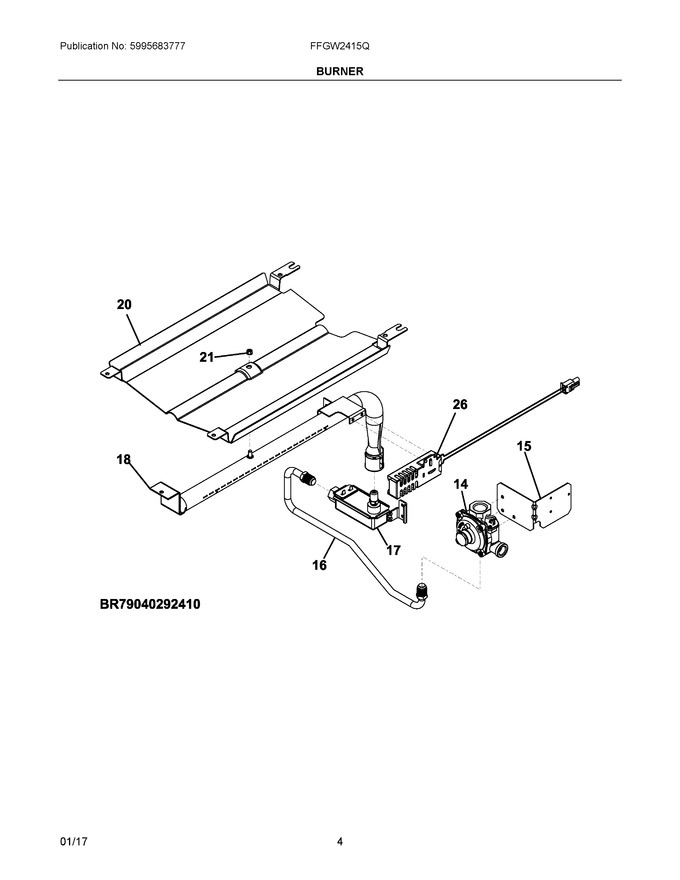

03 - Burner


04 - Body


05 - Door/drawer


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	A13097101		Regulator, Pressure   (Replaces: 316416706)				$ 137.92
15	5304498069		Bracket, Regulator Mtg.		Appelez-nous	-
16	807181201		Tube, Regulator, To Valve		Appelez-nous	-
17	807192701		Valve, Safety		Appelez-nous	-
18	5304502520		Burner, Bake				$ 192.96
20	139076601		Baffle, Oven Burner		Appelez-nous	-
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.46
26	5303935066		Ignitor, Oven Burner   (Replaces: 318177710)			Immediately	$ 66.20
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5304504261		Harness, Ignitor Jumper		Appelez-nous	-
NIA	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 15.75
NIA	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 14.96
NIB	318165800		Spacer, Glass, Foam				$ 19.69
