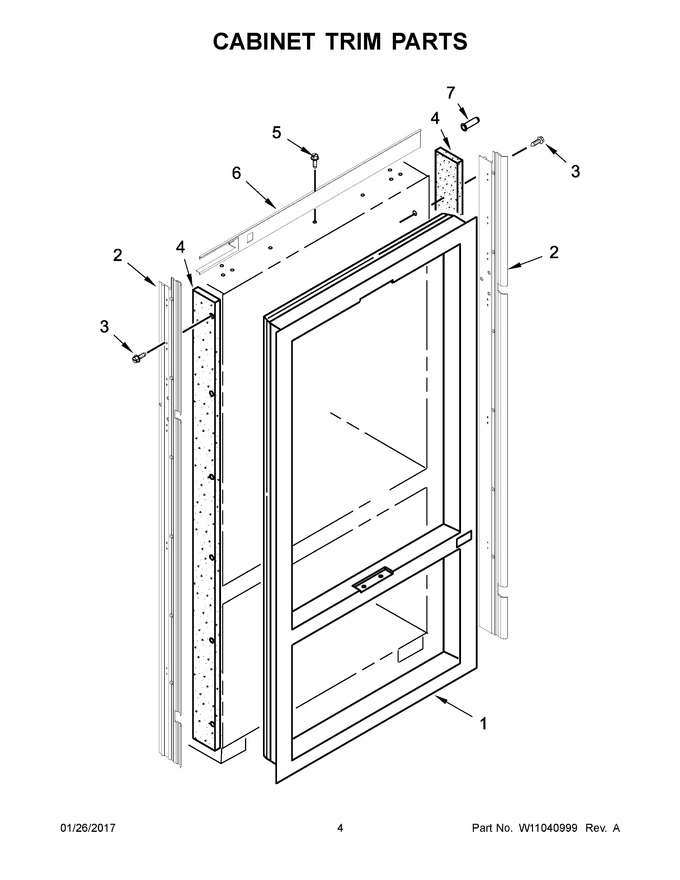

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Breaker, Trim (not Serviced) |
|
- | |||||
| 2 | W10714136 | Assembly, Trim Left Hand (black) |
|
$ 364.25 | |||||
| 3 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 4 | 2005925 | Seal, Side Trim |
|
$ 83.72 | |||||
| 5 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 6 | W11623285 | Trim, Cabinet (top) Left Hand (grey) (Replaces: W10613060) |
|
- | |||||
| 7 | WPW10121451 | Insert, Blind Threaded (Replaces: W10121451) |
|
Immediately | $ 8.03 | ||||
| 2A | W10606846 | Assembly, Trim Right Hand (black) |
|
$ 364.25 |
