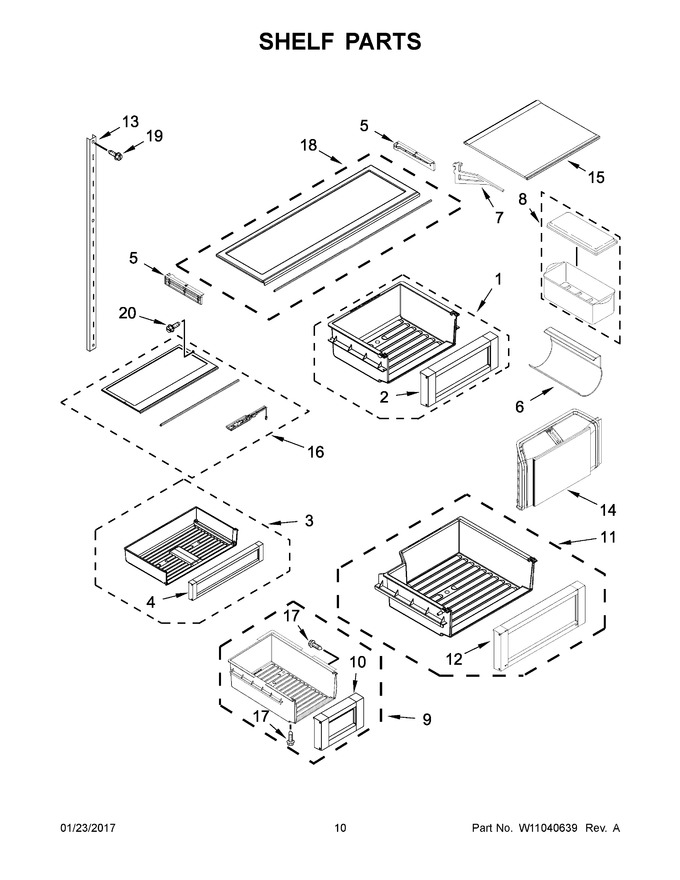

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10529500		Assembly, Crisper Pan				$ 404.25
2	W10529477		Assembly, Crisper Pan Front		Appelez-nous	-
3	W10529502		Assembly, Deli Pan				$ 520.92
4	W10529485		Assembly, Deli Pan Front		Appelez-nous	-
5	W10569842		Support, Crisper Cover Left Hand (grey)		Appelez-nous	-
6	W10701859		Rack, Wine				$ 21.53
7	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 51.64
8	WP2221071A		Assembly, Egg Bin   (Replaces: 2221071)				$ 25.79
9	W10626679		Assembly, Ice Pan				$ 378.87
10	W10626676		Assembly, Ice Pan Front		Appelez-nous	-
11	W10626680		Assembly, Freezer Pan		Appelez-nous	-
12	W10626677		Assembly, Freezer Pan Front		Appelez-nous	-
13	W10743252		Ladder, Shelf Left Hand (grey)		Appelez-nous	-
14	W10593207		Assembly, Produce Preserver		Appelez-nous	-
15	WPW10198700		Shelf   (Replaces: W10198700)				$ 312.70
16	WPW10569933		Cover, Deli Bin (grey)   (Replaces: W10569933)				$ 301.57
17	WP488787		Screw   (Replaces: 488886)				$ 11.26
18	WPW10569936		Cover, Crisper (grey)   (Replaces: W10569936)				$ 254.00
19	W10678207		Screw (black)   (Replaces: W10745668)				$ 16.43
20	W10531302		Screw (black)		Appelez-nous	-
13A	W10743251		Ladder, Shelf Right Hand (grey)		Appelez-nous	-
13B	W10743232		Ladder, Shelf Center (grey)		Appelez-nous	-
5A	W10569839		Support, Crisper Cover Right Hand (grey)		Appelez-nous	-
