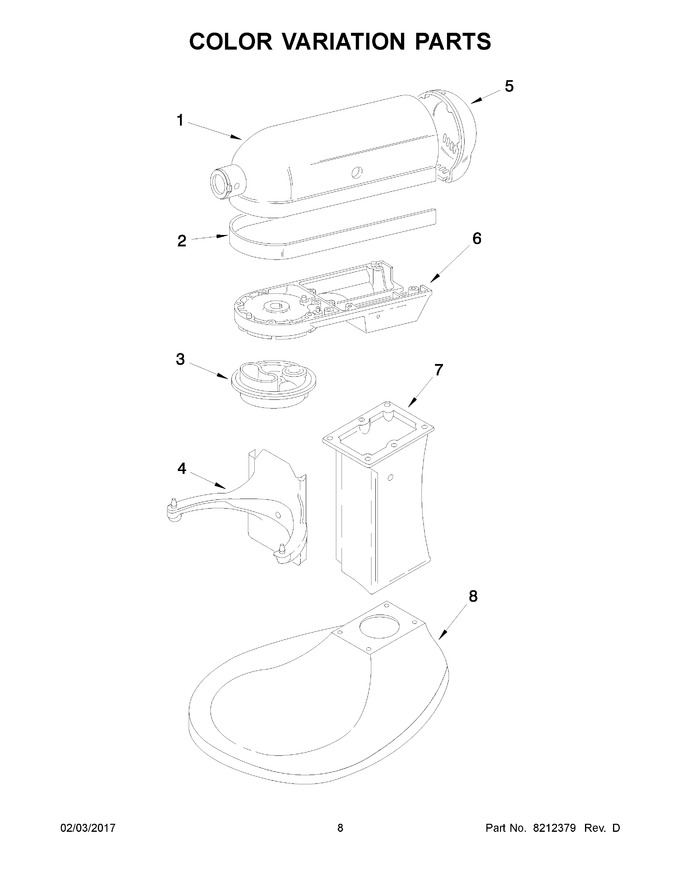

05 - Color Variation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11672793 | Motor Housing (white) (Replaces: 240291-1) |
|
$ 113.22 | |||||
| 2 | W11092114 | Trim Band (black) (Replaces: W10474763) |
|
- | |||||
| 3 | WP240286-1 | Planetary (white) (Replaces: 240286-1) |
|
Immediately | $ 25.99 | ||||
| 4 | 3179300 | Bowl Support & Pins (white) |
|
$ 66.43 | |||||
| 5 | WP240253-1 | End Cover (white) (Replaces: 240253-1) |
|
$ 21.47 | |||||
| 6 | 9701508 | Lower Gearcase (white) |
|
- | |||||
| 7 | 240148-4 | Column (white) |
|
- | |||||
| 8 | 3179280 | Base & Foot Assembly (white) |
|
- | |||||
| 1A | WP240291-21 | Motor Housing (empire Red) (Replaces: 240291-21) |
|
$ 101.29 | |||||
| 1B | WP240291-22 | Motor Housing (imperial Grey) (Replaces: 240291-22) |
|
$ 99.59 | |||||
| 1C | WP240291-13 | Motor Housing (onyx Black) (Replaces: 240291-13) |
|
$ 101.67 | |||||
| 3A | W11084831 | Planetary (empire Red) (Replaces: 240286-23) |
|
$ 27.92 | |||||
| 3B | 240286-24 | Planetary (imperial Grey) |
|
$ 49.73 | |||||
| 3C | W11199173 | Planetary (onyx Black) (Replaces: 240286-16) |
|
$ 32.71 | |||||
| 4A | 3179318 | Bowl Support & Pins (empire Red) |
|
- | |||||
| 4B | 3179304 | Bowl Support & Pins (imperial Grey) |
|
$ 43.34 | |||||
| 4C | 3179311 | Bowl Support & Pins (onyx Black) |
|
- | |||||
| 5A | W11084313 | End Cover (empire Red) (Replaces: 240253-22) |
|
$ 29.89 | |||||
| 5B | 240253-23 | End Cover (imperial Grey) |
|
$ 43.04 | |||||
| 5C | 240253-14 | End Cover (onyx Black) |
|
$ 48.42 | |||||
| 6A | W10218387 | Lower Gearcase (empire Red) |
|
- | |||||
| 6B | W10777150 | Lower Gearcase (imperial Grey) |
|
- | |||||
| 6C | 240354-43 | Lower Gearcase (onyx Black) |
|
- | |||||
| 7A | 9702393 | Column (empire Red) |
|
- | |||||
| 7B | 240148-10 | Column (imperial Grey) |
|
- | |||||
| 7C | 240148-15 | Column (onyx Black) |
|
- | |||||
| 8A | 3179299 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 8B | 240493-8 | Base & Foot Assembly (imperial Grey) |
|
- | |||||
| 8C | 3179292 | Base & Foot Assembly (onyx Black) |
|
- |
