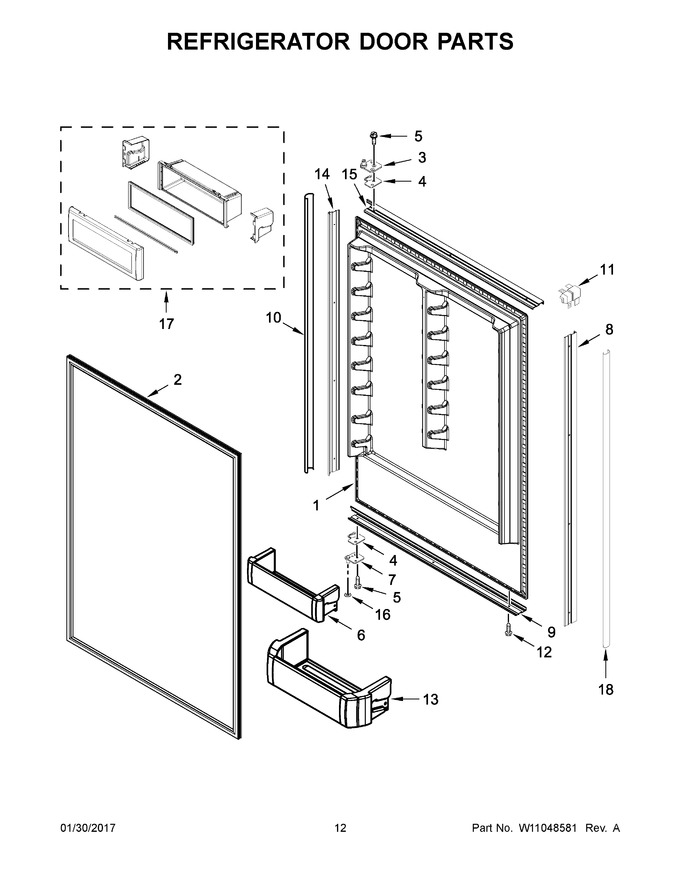

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10782342 | Door, Refrigerator (includes Item 2) (Replaces: W10707737) |
|
$ 750.74 | |||||
| 2 | W10803136 | Gasket, Door (grey) (Replaces: W10609679) |
|
$ 349.58 | |||||
| 3 | W10484480 | Assembly, Top Hinge |
|
$ 64.04 | |||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 6 | W11590561 | Bin, Shallow (Replaces: W10323603) |
|
$ 94.23 | |||||
| 7 | 2256281 | Assembly, Bottom Hinge (left Hand) |
|
$ 86.00 | |||||
| 8 | 2309475 | Trim, Door (handle Side) |
|
$ 305.29 | |||||
| 9 | 2309474 | Trim, Door (bottom) |
|
$ 260.24 | |||||
| 10 | 2266942S | Cover, Trim (hinge Side) |
|
$ 97.89 | |||||
| 11 | 2207457 | Trim, Corner |
|
$ 57.12 | |||||
| 12 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 13 | W10323749 | Bin, Gallon |
|
$ 136.84 | |||||
| 14 | W10794409 | Trim, Door (hinge Side) |
|
$ 137.34 | |||||
| 15 | 2309473 | Trim, Door (top) |
|
$ 288.89 | |||||
| 16 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 17 | W10323044 | Assembly, Utility Bin |
|
$ 132.58 | |||||
| 18 | 2209084S | Cover, Trim (handle Side) |
|
$ 136.73 | |||||
| 7A | 2256280 | Assembly, Bottom Hinge (right Hand) |
|
$ 68.49 |
