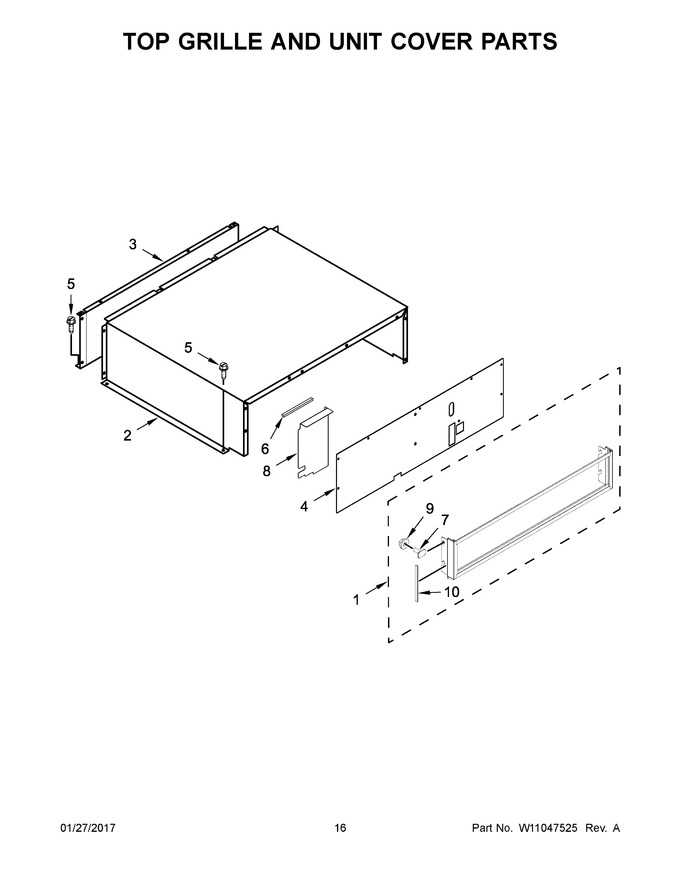

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10783521		Assembly, Grille (left Hand)		Appelez-nous	-
2	W11735285		Cover, Unit   (Replaces: W10545068)			Immediately	$ 196.16
3	2256466		Panel, Unit Back				$ 311.64
4	W10694109		Cover, Unit Front				$ 180.57
5	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
6	W10645113		Gasket, Unit Cover		Appelez-nous	-
7	2003347		Bolt				$ 14.28
8	W10645086		Divider, Unit Air				$ 97.90
9	WP488130		Nut   (Replaces: 1161548)				$ 6.97
10	W10783303		Gasket, Foam		Appelez-nous	-
1A	W10783517		Assembly, Grille (right Hand)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
