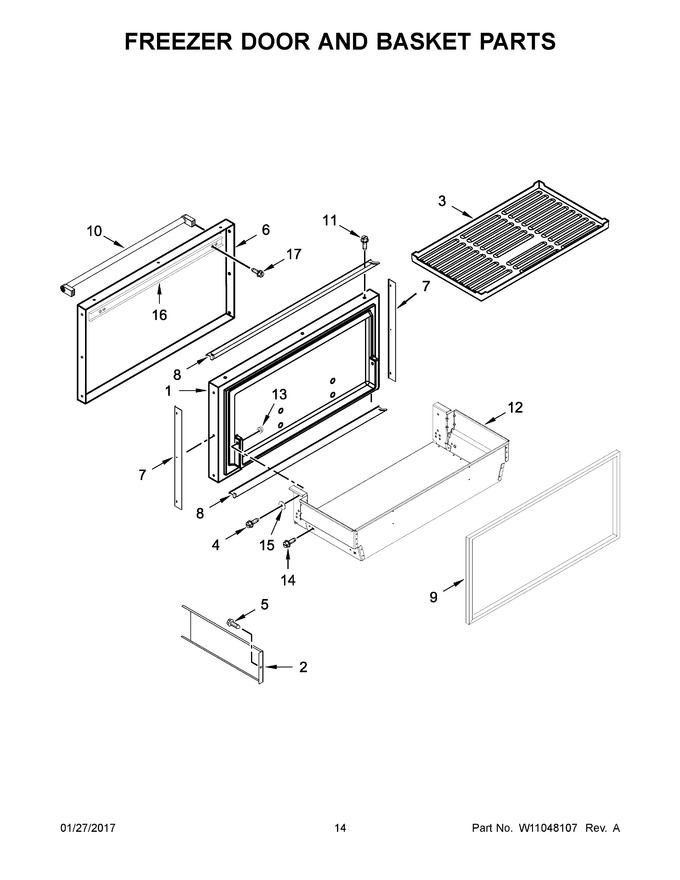

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10782351		Door, Freezer (includes Item 9)   (Replaces: W10707735)				$ 880.19
2	2317101		Divider, Basket		Appelez-nous	-
3	W10665412		Mat, Basket		Appelez-nous	-
4	W10761334		Screw				$ 12.31
5	WP488234		Screw   (Replaces: W10135792)				$ 6.74
6	W11797626		Skin, Door (stainless)   (Replaces: W10541579)		Appelez-nous	-
7	W10609690		Spacer, Door Edge (side)		Appelez-nous	-
8	W10609689		Spacer, Door Edge (top And Bottom)				$ 141.04
9	W11625085		Gasket, Door (grey)   (Replaces: W10609687)			Immediately	$ 304.17
10	W10783283		Handle, Door (stainless)   (Replaces: W10541591)				$ 205.37
11	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.88
12	W10774207		Assembly, Freezer Basket		Appelez-nous	-
13	W10771111		Nut			Immediately	$ 18.72
14	W10109030		Screw				$ 14.62
15	W10001190		Washer				$ 8.38
16	W10127710		Plate, Handle Door			Immediately	$ 24.70
17	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.76
