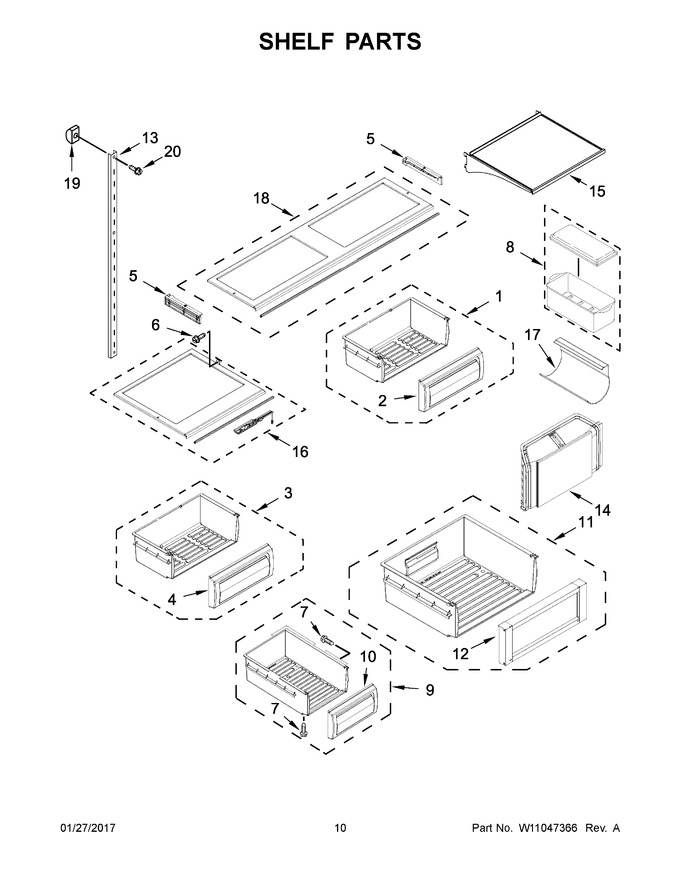

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10529577		Assembly, Crisper Pan				$ 383.88
2	W10529562		Assembly, Crisper Pan Front		Appelez-nous	-
3	W10529581		Assembly, Deli Pan			Immediately	$ 408.89
4	W10529566		Assembly, Deli Pan Front				$ 308.77
5	W10569854		Support, Crisper Cover Left Hand (grey)				$ 84.14
6	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
7	WP488787		Screw   (Replaces: 488886)				$ 11.26
8	WP2221071A		Assembly, Egg Bin   (Replaces: 2221071)				$ 25.79
9	W10600690		Assembly, Ice Pan		Appelez-nous	-
10	W10600687		Assembly, Ice Pan Front		Appelez-nous	-
11	W10609697		Assembly, Freezer Pan			Immediately	$ 321.00
12	W10609699		Assembly, Freezer Pan Front		Appelez-nous	-
13	W10569878		Ladder, Shelf Side (grey)		Appelez-nous	-
14	W10593207		Assembly, Produce Preserver		Appelez-nous	-
15	W10568582		Assembly, Shelf				$ 384.37
16	WPW10578291		Cover, Deli Bin   (Replaces: W10578291)				$ 314.81
17	W10701859		Rack, Wine				$ 21.53
18	W11430644		Cover, Crisper   (Replaces: W10578296)				$ 364.70
19	520965		Support, Ladder				$ 31.35
20	W10808291		Screw		Appelez-nous	-
13A	W11318240		Ladder, Shelf Center (grey)   (Replaces: W10633564)		Appelez-nous	-
5A	W10569853		Support, Crisper Cover Right Hand (grey)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
