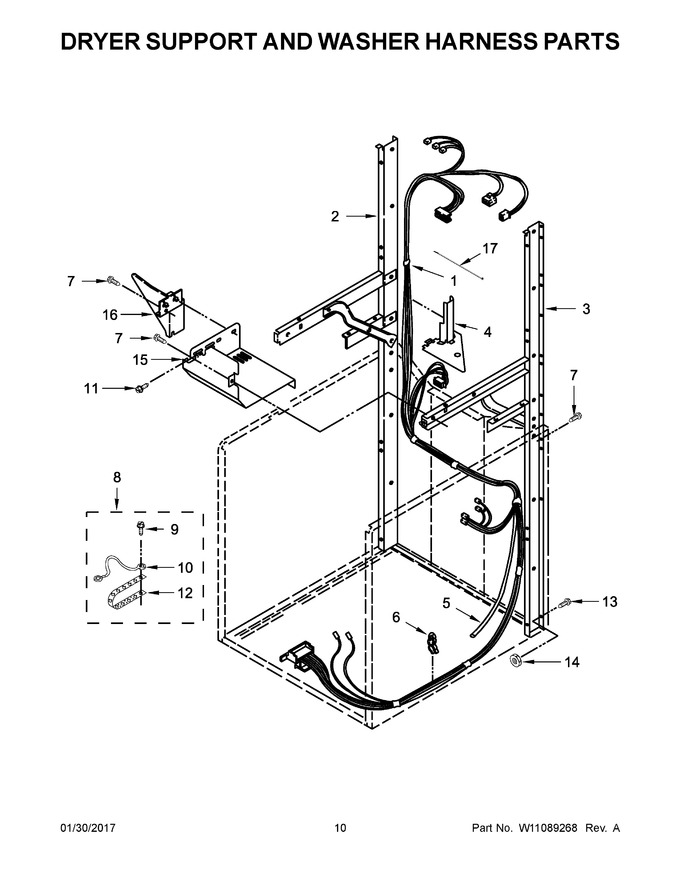

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10912323		Harness, Washer				$ 329.20
2	3388851		Assembly, Channel (left)				$ 336.85
3	3388850		Assembly, Channel (right)				$ 337.53
4	3390609		Shield, Harness		Appelez-nous	-
5	W10834213		Hose, Pressure Switch   (Replaces: W10564195)			Immediately	$ 33.26
6	W10210799		Clip, Harness		Appelez-nous	-
7	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
8	685463		Kit, Grounding		Appelez-nous	-
9	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
10	685449		Wire		Appelez-nous	-
11	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
12	22965		Strap, Grounding		Appelez-nous	-
13	3400300		Bolt		Appelez-nous	-
14	WP8533952		Nut, Hex   (Replaces: 8533952)				$ 87.00
15	W11108181		Shield, Front   (Replaces: 3394350)				$ 75.63
16	W10513339		Shield, Thermostat				$ 26.25
17	WPW10334336		Tie, Cable   (Replaces: W10334336)				$ 6.71

    View Diagram in Separate Window       Print Part List
