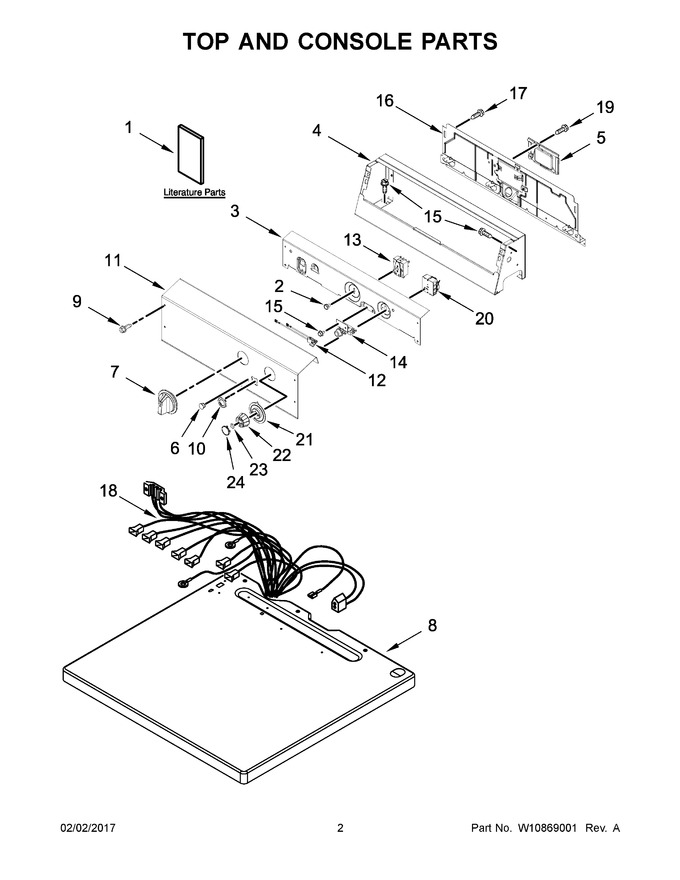

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10868655		Installation Instructions		Appelez-nous	-
2	W10139100		Screw				$ 13.01
3	W10461071		Back Bracket, Non-coin		Appelez-nous	-
4	W11124005		Console   (Replaces: W10461095)				$ 238.42
5	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
6	WPW10133502		Indicator Lights Assembly   (Replaces: W10133502)				$ 13.51
7	W11643382		Knob   (Replaces: W10133507)			Immediately	$ 26.27
8	WPW10136704		Top (white)   (Replaces: W10136704)				$ 273.45
9	WPW10131119		Screw   (Replaces: W10386302)				$ 7.30
10	W10510149		Bezel - Pts			Immediately	$ 28.63
11	W11091961		Fascia   (Replaces: W10845280)		Appelez-nous	-
12	W10662107		Lamp, Indicator				$ 27.18
13	WPW10327105		Switch, Cycle Selection   (Replaces: W10327105)				$ 169.74
14	W11097274		Switch, Push To Start   (Replaces: W10424310)				$ 70.83
15	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
16	W10863352		Panel, Rear (console)		Appelez-nous	-
17	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
18	W10153137		Harness, Main Mde20mnayw0		Appelez-nous	-
19	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
20	WPW10157942		Timer, Dryer   (Replaces: W10157942)				$ 350.88
21	W10133506		Skirt, Dial				$ 19.90
22	W10906058		Knob		Appelez-nous	-
23	W10155650		Nut, Hex				$ 14.04
24	WPW10133501		Cap, Knob   (Replaces: W10133501)				$ 63.88
18A	W10164627		Harness, Main Mde20mnazw0				$ 211.71
1A	W10296778		Wiring Diagram Mde20mnayw0		Appelez-nous	-
1B	W10296779		Wiring Diagram Mde20mnazw0		Appelez-nous	-
