SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

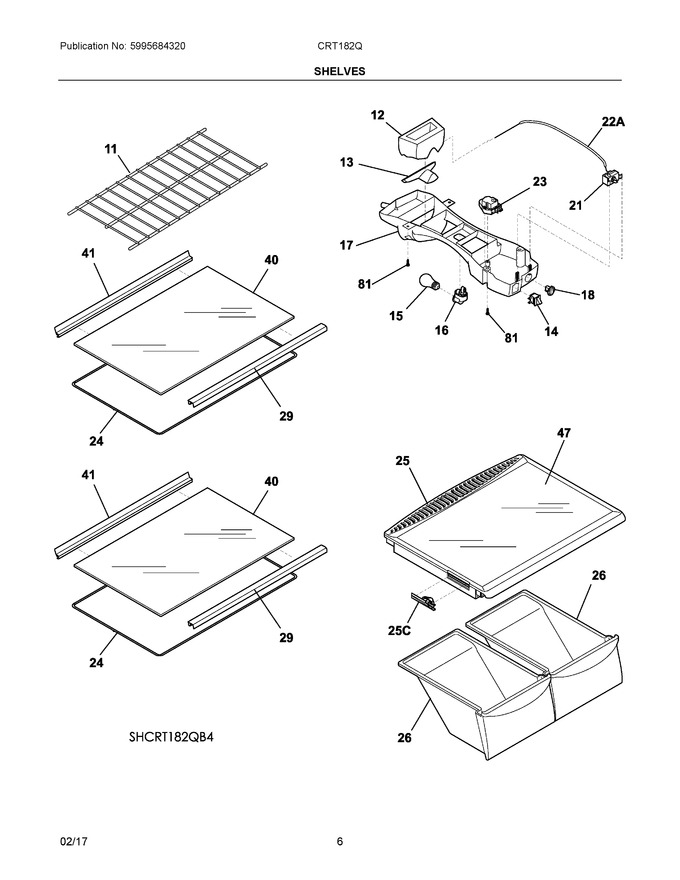

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358008		Shelf, Freezer				$ 102.00
12	241542001		Diffuser, Air, Top			Immediately	$ 82.69
13	240362601		Diffuser, Air, Bottom			Immediately	$ 46.46
14	241554901		Switch-light/lamp				$ 78.75
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 22.75
16	241559801		Socket-light				$ 80.75
17	5304503170		Control Box				$ 28.82
18	240360801		Knob, Temp Control				$ 43.95
21	241537103		Control-temperature			Immediately	$ 80.34
23	241705102		Timer-defrost			Immediately	$ 126.12
24	240372409		Frame, Sliding Shelf, Full Width				$ 141.20
25	240364793		Cover-crisper Pan   (Replaces: 240364786)			Immediately	$ 121.04
26	240337103		Pan-crisper, Clear, (2), No Graphics			Immediately	$ 164.83
29	240357704		Trim-shelf, Front			Immediately	$ 73.61
40	240350620		Glass-shelf, 23.78" X 16.34			Immediately	$ 156.55
41	240561502		Trim-shelf, Rear			Immediately	$ 79.54
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 50.55
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White				$ 10.11
25C	241613502		Control-humidity, Lh				$ 53.09
NI	5304509673		Label-energy/energuide		Appelez-nous	-
NIA	240568606		Seal   (Replaces: 240568607)				$ 14.18
NIA	241705801		Spacer-shelf				$ 7.88
NIA	240388701		Wiring Harness, Control Box			Immediately	$ 88.99
