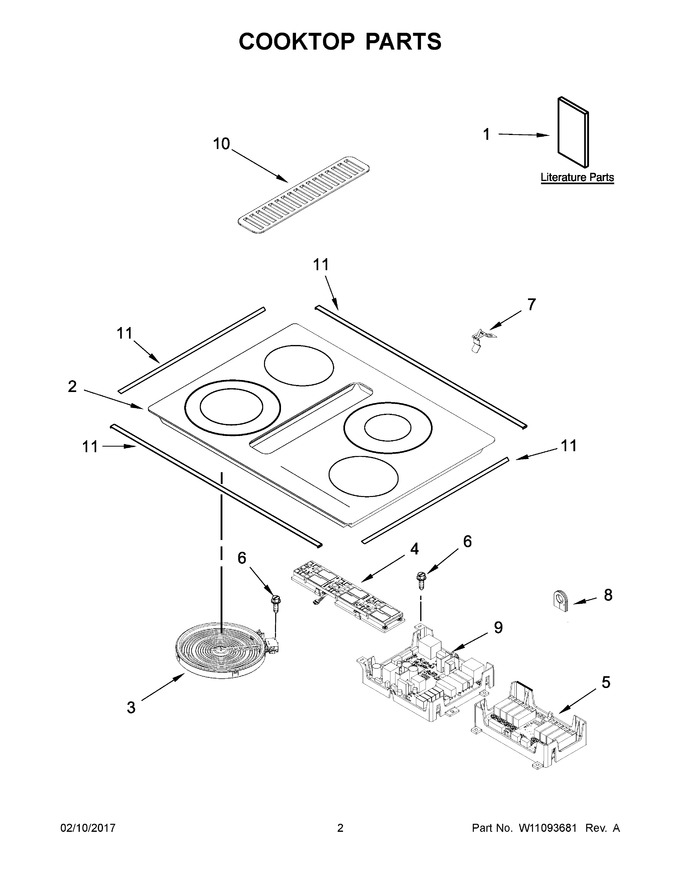

02 - Cooktop Parts


03 - Blower Unit Parts


04 - Burner Box Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10848428		Instructions, Installation		Appelez-nous	-
2	W10796745		Top (black)		Appelez-nous	-
3	W11517959		Element (3000/1400w) (left Front & Right (rear)   (Replaces: W10275048)			Immediately	$ 134.44
4	W11083931		Assembly, Ui   (Replaces: W11032484)				$ 587.98
5	W11083951		Control, Electronic   (Replaces: W10817977)				$ 561.08
6	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
7	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
8	W10324729		Grommet, Wire (large Hole)				$ 9.03
9	W10817979		Manager, Appliance		Appelez-nous	-
10	W11476087		Grille, Air (black)   (Replaces: W10844354)			Immediately	$ 406.94
11	W11091955		Assembly, Trim (stainless Models Only)   (Replaces: W10836028)				$ 312.39
1A	W10848426		Instructions, User		Appelez-nous	-
1B	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1D	W11031713		Sheet, Tech		Appelez-nous	-
1E	W10917819		Diagram, Wiring		Appelez-nous	-
2A	W10908403		Top (stainless)		Appelez-nous	-
3A	W11171119		Element (1200w) (right Front)   (Replaces: 8273994)			Immediately	$ 182.23
3B	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 145.32
NI	W10909126		Kit, Plenum Screw			Immediately	$ 22.14
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11190486		Harness, Main   (Replaces: W10836940)				$ 207.02
NI	W10809384		Harness, Cooktop Element				$ 101.46
NI	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 12.05
