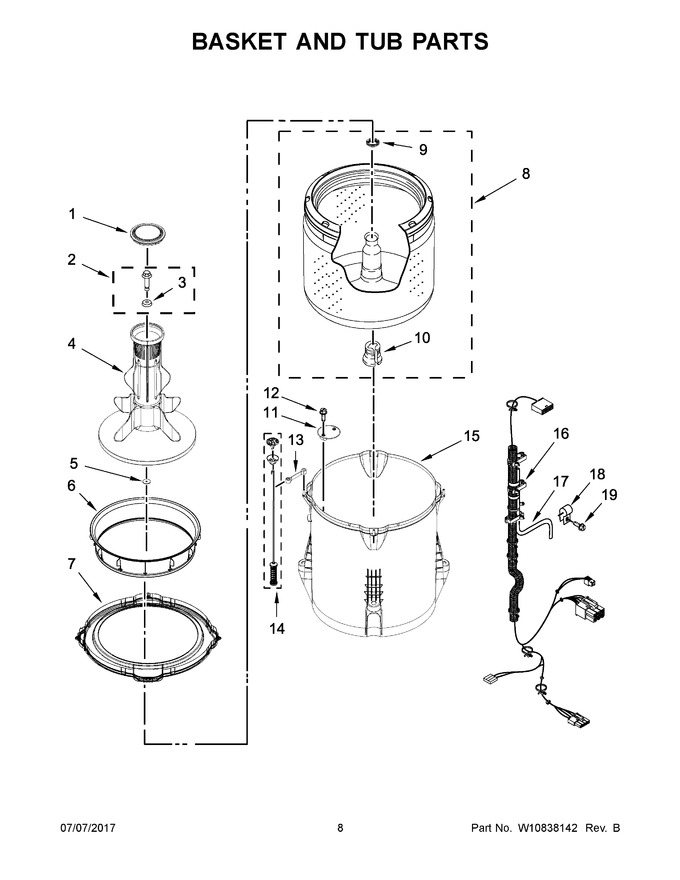

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10131111 | Cap, Agitator (Replaces: W10131111) |
|
Immediately | $ 8.49 | ||||
| 2 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 5.24 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | WPW10131112 | Agitator (Replaces: W10131112) |
|
Immediately | $ 124.13 | ||||
| 5 | W10832827 | Rubber Washer, Impeller (Replaces: W10755559) |
|
- | |||||
| 6 | W11222084 | Adapter, Balance Ring (Replaces: W10424289) |
|
Immediately | $ 69.38 | ||||
| 7 | WPW10461196 | Ring, Tub (Replaces: W10461196) |
|
Immediately | $ 176.48 | ||||
| 8 | W10738339 | Basket Assembly (Replaces: W10389330) |
|
$ 265.85 | |||||
| 9 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.89 | ||||
| 10 | W11084139 | Block, Basket Drive (Replaces: W10198148) |
|
Immediately | $ 17.08 | ||||
| 11 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 62.15 | |||||
| 12 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 13 | W11403873 | Strap, Snubber (Replaces: W10839119) |
|
Immediately | $ 24.74 | ||||
| 14 | W10780046 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Balls And Suspension Bushings) (Replaces: W10821942) |
|
Immediately | $ 171.32 | ||||
| 15 | W10371566 | Tub (Replaces: W10238320) |
|
$ 339.37 | |||||
| 16 | W11744742 | Harness, Lower (includes Pressure Hose) (Replaces: W10843660) |
|
Immediately | $ 111.22 | ||||
| 17 | WP353244 | Hose, Pressure Switch (Replaces: W10531633) |
|
Immediately | $ 59.93 | ||||
| 18 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.08 | ||||
| 19 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.00 |
