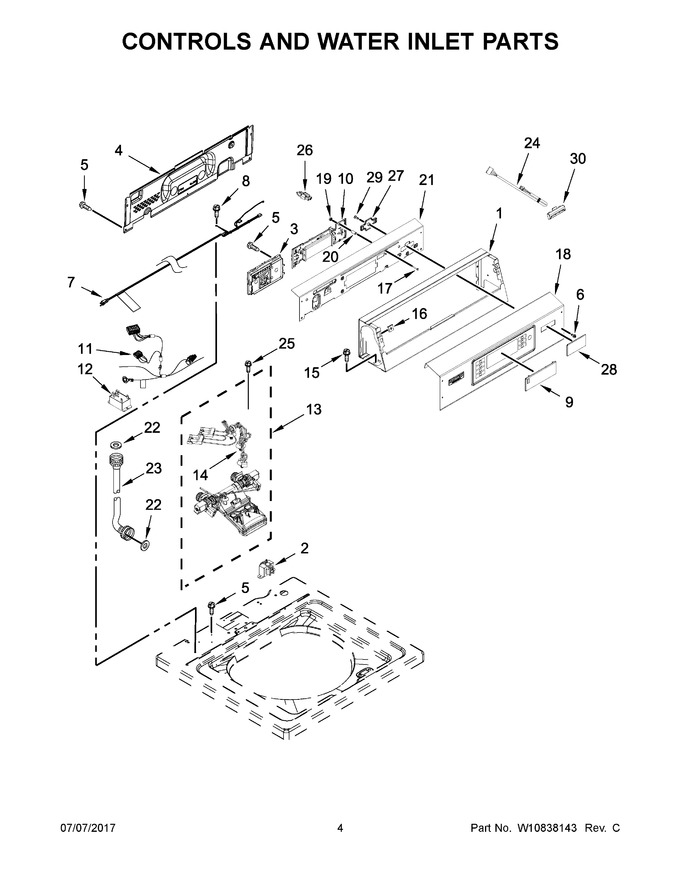

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11124005 | Console (Replaces: W10461095) |
|
$ 238.42 | |||||
| 2 | WPW10131839 | Transformer (Replaces: W10131839) |
|
$ 140.23 | |||||
| 3 | W11256554 | Control Unit Assembly, Machine & Motor (Replaces: W10850499) |
|
$ 402.49 | |||||
| 4 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 360.43 | ||||
| 5 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 6 | WPW10131119 | Screw M4x13 (Replaces: W10131119) |
|
$ 7.30 | |||||
| 7 | W11763414 | Cord, Power (Replaces: W10916258) |
|
- | |||||
| 8 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 9 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 69.59 | |||||
| 10 | W11323688 | User Interface (Replaces: W11113315) |
|
$ 352.78 | |||||
| 11 | W11680813 | Harness, Upper (Replaces: W10843665) |
|
$ 192.02 | |||||
| 12 | W11384790 | Relay (Replaces: W11032871) |
|
Immediately | $ 78.48 | ||||
| 13 | W11205048 | Inlet Assembly, Water (Replaces: W10843663) |
|
Immediately | $ 193.22 | ||||
| 14 | W10843398 | Harness, Valve |
|
Immediately | $ 148.30 | ||||
| 15 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 16 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 8.10 | |||||
| 17 | W11117300 | Screw (Replaces: W10137322) |
|
- | |||||
| 18 | W11100982 | Fascia (Replaces: W10821635) |
|
- | |||||
| 19 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 9.23 | |||||
| 20 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 21 | W11760232 | Bracket, Control (Replaces: W10845298) |
|
- | |||||
| 22 | WP16123 | Washer, Hose (Replaces: W10242307) |
|
$ 8.16 | |||||
| 23 | W11085908 | Hose, Water Inlet (cold) (Replaces: W10852720) |
|
Immediately | $ 51.72 | ||||
| 24 | W10858740 | Card Reader, Harness (Replaces: W10133304) |
|
$ 25.16 | |||||
| 25 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.55 | ||||
| 26 | W11129439 | Jumper, Switch Service/vault (Replaces: W10133282) |
|
$ 17.66 | |||||
| 27 | W11775266 | Retainer, Card Reader Cover (Replaces: W10137770) |
|
- | |||||
| 28 | W11164066 | Cover, Card Reader (Replaces: W10137769) |
|
- | |||||
| 29 | 3400618 | Screw |
|
$ 67.94 | |||||
| 30 | WPW10131115 | Bezel (Replaces: W10131115) |
|
$ 8.90 | |||||
| 23A | W11085908 | Hose, Water Inlet (hot) (Replaces: W10852721) |
|
Immediately | $ 51.72 |
