View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

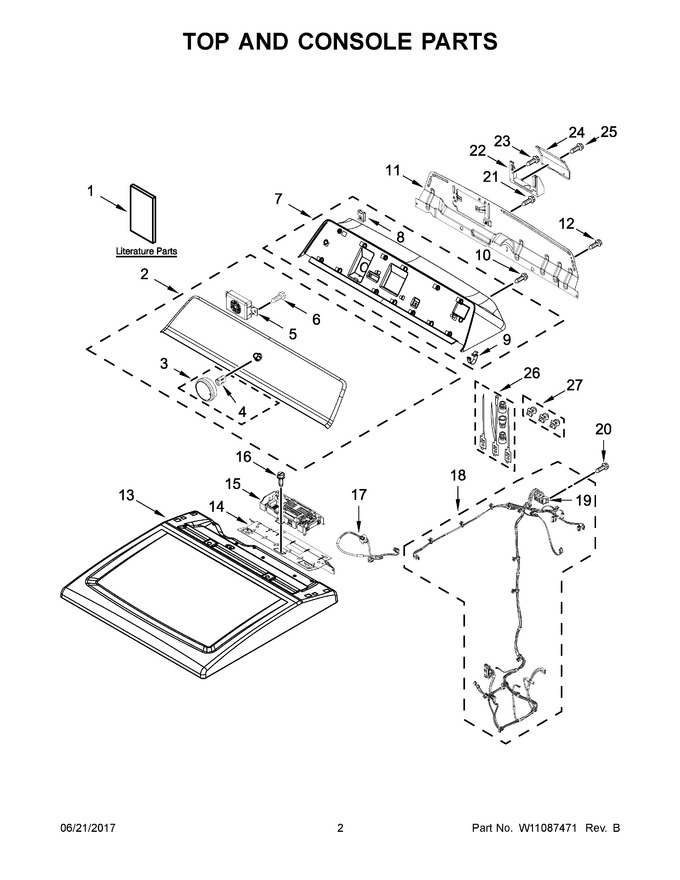

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10904260 | Installation Instructions |
|
- | |||||
| 2 | W11089306 | Fascia Assembly (Replaces: W10913337) |
|
Immediately | $ 472.30 | ||||
| 3 | W10853910 | Assembly, Control Knob (chrome) (Replaces: W10727011) |
|
$ 53.94 | |||||
| 4 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 5 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 6 | WP9740849 | Screw (Replaces: 9740849) |
|
$ 7.30 | |||||
| 7 | W11089305 | Console (white) (Replaces: W10897838) |
|
$ 372.81 | |||||
| 8 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 9 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 10 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 11 | W11089307 | Panel, Rear Console (Replaces: W10896065) |
|
$ 199.90 | |||||
| 12 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 13 | W11641121 | Top (white) (Replaces: W10260246) |
|
Immediately | $ 215.10 | ||||
| 14 | W11431865 | Bracket, Electronic Control (Replaces: W10896068) |
|
$ 57.36 | |||||
| 15 | W11089308 | Control, Electronic (Replaces: W10914394) |
|
Immediately | $ 559.53 | ||||
| 16 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 17 | W10906300 | Cable, User Interface |
|
$ 170.43 | |||||
| 18 | W10907915 | Wiring Harness |
|
- | |||||
| 19 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 20 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 21 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 22 | W11032547 | Housing, Power Cord |
|
- | |||||
| 23 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 24 | W11112408 | Cover, Power Cord Housing (Replaces: W11032548) |
|
- | |||||
| 25 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 26 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 27 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 1A | W10904263 | Guide, Use And Care |
|
- | |||||
| 1B | W10913969 | Tech Sheet |
|
- | |||||
| 1C | W10904265 | Quick Start Guide |
|
- |
