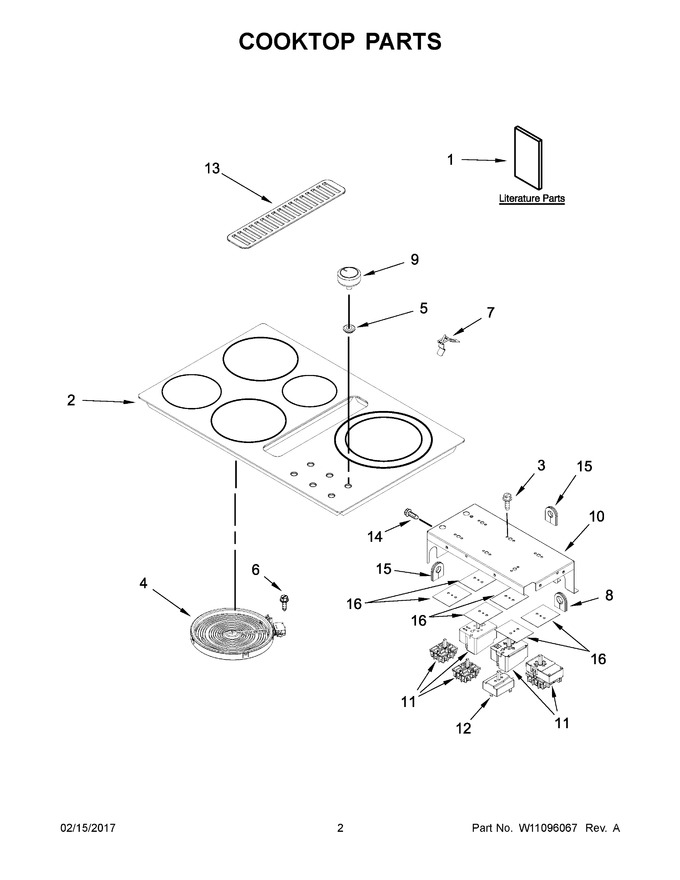

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10848428 Instructions, Installation Appelez-nous -
2 W11051486 Top (black)   (Replaces: W10795401) Special Order $ 1,028.00

3 WP7101P309-60 Screw   (Replaces: 7101P309-60) In-Stock Immediately $ 7.30

4 WPW10342780 Element (1300w) (left Front)   (Replaces: W10342780) In-Stock Immediately $ 145.32

5 W10853046 Bezel, Knob (stainless)   (Replaces: W10593536) In-Stock Immediately $ 74.53

6 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

7 WPW10225448 Spring, Element   (Replaces: W10225448) In-Stock Immediately $ 10.40

8 W10324729 Grommet, Wire (large Hole) Special Order $ 9.03

9 W11084158 Knob, Control (stainless)   (Replaces: W10884728) In-Stock Immediately $ 25.20

10 W10834481 Bracket, Switch Appelez-nous -
11 W10917724 Switch, Infinite (left Front & Center Front)   (Replaces: W10437094) In-Stock Immediately $ 129.35

12 W11690658 Switch, Blower   (Replaces: W10866567) In-Stock Immediately $ 67.33

13 WPW10205094 Grille, Air (black)   (Replaces: W10205094) Special Order $ 255.44

14 WPY706189 Screw   (Replaces: 7101P427-60) In-Stock Immediately $ 7.55

15 8008P068-60 Grommet, Wire (small Hole) Special Order $ 16.79

16 3183956 Seal, Switch Cover Special Order $ 48.77

11A W11661906 Switch, Infinite (left Rear)   (Replaces: W10843843) In-Stock Immediately $ 19.59

11B W10911303 Switch, Infinite (center Rear)   (Replaces: W10578768) In-Stock Immediately $ 104.64

11C W10857622 Switch, Infinite (right Rear)   (Replaces: W10437092) In-Stock Immediately $ 211.69

1A W10848424 Instructions, User Appelez-nous -
1B 9762761 Tips, Safe Cooking (english) Appelez-nous -
1C W10065852 Tips, Safe Cooking (french) Appelez-nous -
1D W10917816 Sheet, Tech Appelez-nous -
1E W11026766 Diagram, Wiring Appelez-nous -
2A W11051487 Stainless (stainless Model Includes Trim)   (Replaces: W10795402) Special Order $ 789.36

4A WP8273993 Element (1800w) (left Rear)   (Replaces: 8273993) In-Stock Immediately $ 244.51

4B WPW10251108 Element (3200w) (center Front)   (Replaces: W10251108) In-Stock Immediately $ 223.66

4C W11171119 Element (1200w) (center Rear)   (Replaces: 8273994) In-Stock Immediately $ 182.23

4D W10823727 Element (3000w) (right Rear)   (Replaces: W10711900) In-Stock Immediately $ 342.63

NI N/P Following Parts Not Illustrated Appelez-nous -
NI W10491984 Seal, Limiter   (Replaces: 3192439) Special Order $ 12.05

NI W10835283 Harness, Blower Special Order $ 73.36

NI W11465762 Harness, Jumper   (Replaces: W10858227) Special Order $ 33.38

NI W10909126 Kit, Plenum Screw In-Stock Immediately $ 22.14

NI W11134610 Harness, Main   (Replaces: W10809383) Appelez-nous -
