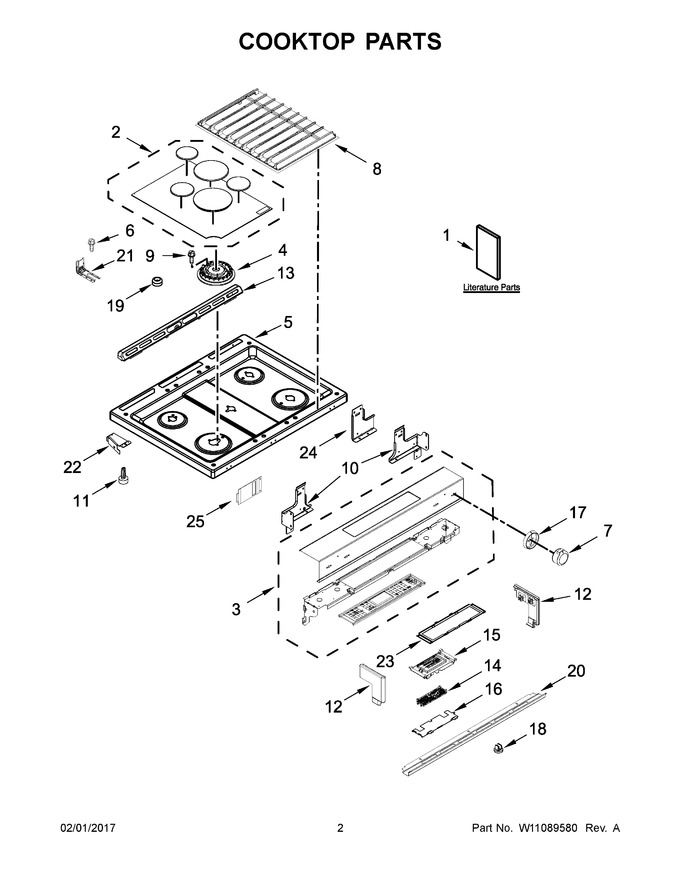

02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10665256		Instructions, Installation		Appelez-nous	-
2	W10876582		Kit, Burner Cap (black)   (Replaces: W10479989)			Immediately	$ 314.80
3	W11091882		Console (black Stainless)   (Replaces: W10861022)			Immediately	$ 755.28
4	W11106799		Spreader, Flame (left Front)   (Replaces: W10495853)			Immediately	$ 89.01
5	W10536181		Cooktop (black)				$ 180.57
6	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
7	W10872668		Knob (stainless (all Except Left Front))   (Replaces: W10786065)			Immediately	$ 106.21
8	W11026378		Kit, Grate (black)   (Replaces: W10432520)				$ 375.86
9	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
10	W10289170		Support, Cooktop (left)				$ 30.05
11	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 17.61
12	W10913412		Endcap (black (left))				$ 156.26
13	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 205.56
14	W11034208		Control, Mrc2   (Replaces: W10759285)			Immediately	$ 347.79
15	WPW10603096		Assembly, Display   (Replaces: W10603096)			Immediately	$ 263.08
16	W10558372		Bracket, Control				$ 25.10
17	W10814133		Bezel (stainless (kit Of 5))   (Replaces: W10785119)			Immediately	$ 113.38
18	W11025100		Grommet   (Replaces: W10645947)			Immediately	$ 13.16
19	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 21.97
20	W10860957		Console, Lower Panel (black)				$ 265.71
21	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 23.03
22	W10162253		Brace, Corner (left)				$ 74.13
23	W10555923		Bracket, User Interface				$ 107.43
24	W10598048		Bracket, Console (center)				$ 25.73
25	W10757531		Keypad, Shield				$ 80.23
10A	W10289169		Support, Cooktop (right)				$ 30.05
12A	W10913413		Endcap (black (right))				$ 156.26
1A	W10896670		Guide, Use & Care		Appelez-nous	-
1B	W10844271		Sheet, Tech		Appelez-nous	-
1C	W10903847		Diagram, Wiring		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1F	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1G	W10400067		Guide, Quick Start (french)		Appelez-nous	-
22A	W10162252		Brace, Corner (right)				$ 78.59
4A	W10836467		Spreader, Flame (left Rear)   (Replaces: W10464795)				$ 47.63
4B	WPW10256028		Spreader, Flame (right Front)   (Replaces: W10256028)			Immediately	$ 137.69
4C	WPW10256025		Spreader, Flame (right Rear & Center)   (Replaces: W10256025)			Immediately	$ 91.07
7A	W10872674		Knob (stainless (left Front))   (Replaces: W10786064)			Immediately	$ 59.56
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 224.96
NI	W11198972		Harness, Bake/broil   (Replaces: W10754419)				$ 35.84
NI	W10911846		Harness, Main   (Replaces: W10580231)				$ 228.56
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 53.35
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 7.30
NI	W10580229		Wire, Ground				$ 38.22
NI	W10909678		Kit, Lp Conversion   (Replaces: W10681410)			Immediately	$ 121.50
NI	W11087486		Kit, Lp Conversion (bake/broil)   (Replaces: W10566535)			Immediately	$ 117.95
