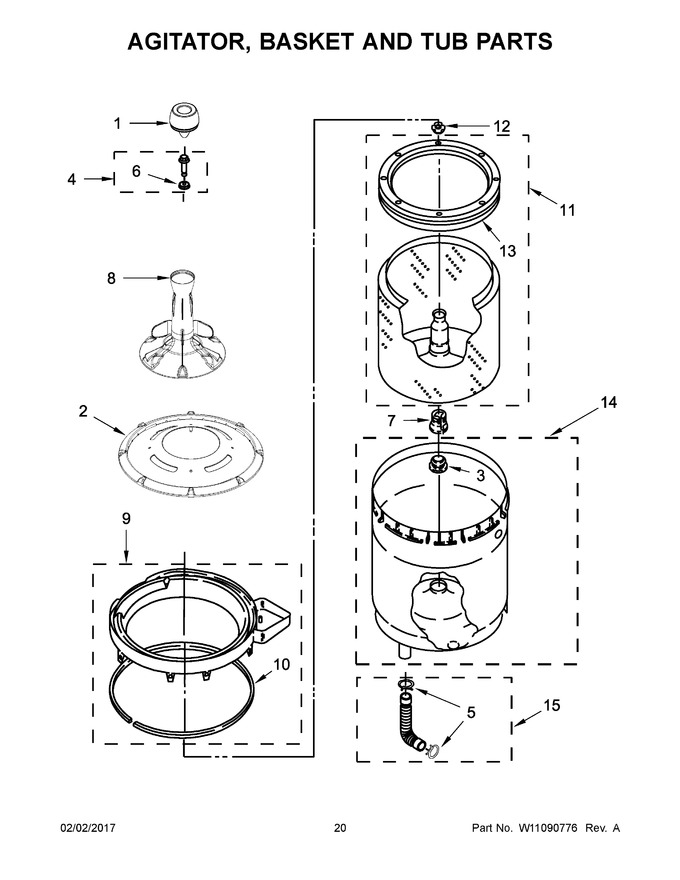

11 - Agitator, Basket And Tub Parts


12 - Gearcase Parts


13 - Brake And Drive Tube Parts


14 - Water System Parts


15 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10793634		Dispenser Assembly   (Replaces: W10777969)			Immediately	$ 80.57
2	W11085570		Base Shield   (Replaces: W10723583)				$ 40.57
3	W10814296		Gasket, Centerpost   (Replaces: 383727)			Immediately	$ 9.98
4	WP358237		Screw And Washer   (Replaces: 358237)			Immediately	$ 8.86
5	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 8.58
6	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.09
7	WP389140		Block, Basket Drive   (Replaces: 389140)			Immediately	$ 27.49
8	W10881748		Agitator   (Replaces: W10680209)			Immediately	$ 185.36
9	W10880720		Tub Ring   (Replaces: W10388299)			Immediately	$ 233.34
10	WP3976308		Seal, Tub Ring   (Replaces: 3976308)			Immediately	$ 29.66
11	3352234		Basket				$ 349.95
12	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 11.56
13	WP387240		Ring, Balance   (Replaces: 387240)			Immediately	$ 191.15
14	WP3349292		Tub   (Replaces: 3349292)			Immediately	$ 325.85
15	285871		Hose, Tub To Pump (includes Clamp)   (Replaces: 3951449)			Immediately	$ 28.99
