SELECT A DIAGRAM

01 - Cover Sheet

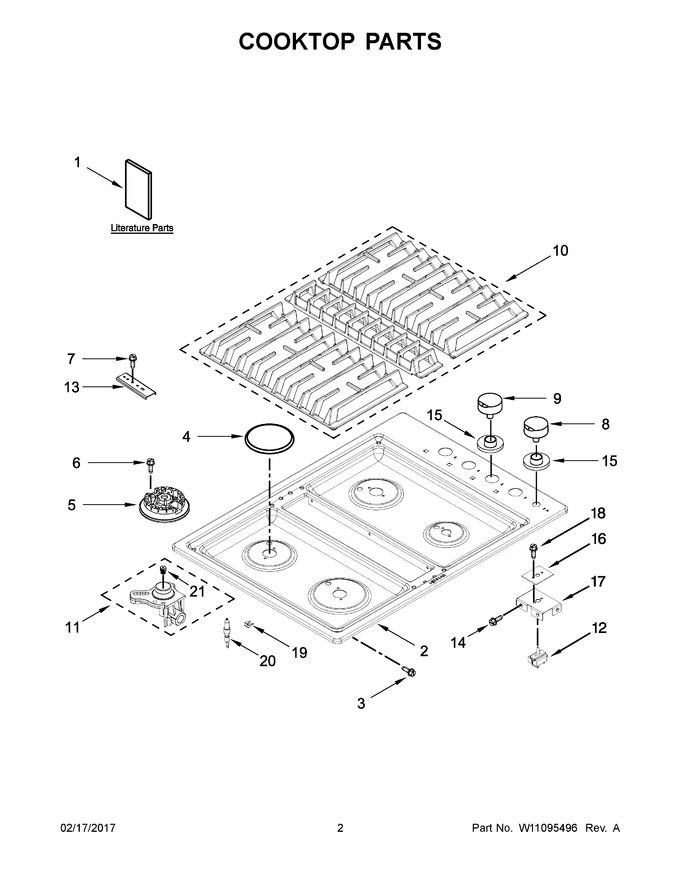

02 - Cooktop Parts


03 - Blower Unit Parts


04 - Burner Box Parts


05 - Optional Parts Not Included


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10848427		Instructions, Installation		Appelez-nous	-
2	W11476216		Top, Main (black)   (Replaces: W10842292)				$ 545.20
3	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 7.55
4	W11579391		Kit, Burner Cap   (Replaces: W10910373)				$ 226.22
5	W11084065		Assembly, Burner (ur) (left Front & Right Rear)   (Replaces: W10815357)				$ 130.80
6	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
7	WP3400093		Screw   (Replaces: 3400093)				$ 7.55
8	W11084047		Knob, Fan (black)   (Replaces: W10876700)				$ 81.10
9	W10559476		Knob, Control (black)				$ 99.76
10	W11241674		Kit, Grate (black)   (Replaces: W10821820)				$ 413.54
11	W10826752		Holder, Orifice (17k) (left Front)				$ 102.50
12	W11676792		Switch, Blower   (Replaces: W10866564)				$ 66.97
13	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 92.86
14	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 7.55
15	W11544657		Bezel (black)   (Replaces: W10559486)				$ 46.01
16	WP71002569		Gasket, Infinite Switch   (Replaces: 7201P077-60)			Immediately	$ 10.57
17	W10868745		Bracket, Switch Mount				$ 76.27
18	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 7.30
19	W11684564		Clip, Spring (electrode)   (Replaces: W10827923)			Immediately	$ 12.65
20	W11690138		Electrode (left Front)   (Replaces: W10862325)				$ 29.91
21	W10907865		Orifice (left Front)				$ 90.69
11A	W10826751		Holder, Orifice (5k) (left Rear)		Appelez-nous	-
11B	W10826754		Holder, Orifice (10k) (right Front)				$ 106.14
11C	W10826753		Holder, Orifice (15k) (right Rear)				$ 106.08
15A	WPW10559494		Bezel (stainless)   (Replaces: W10559494)			Immediately	$ 80.22
1A	W10917791		Diagram, Wiring		Appelez-nous	-
1B	W10848425		Guide, Use & Care		Appelez-nous	-
1C	W10240007		Instructions, Lp Conversion		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
20A	W10862326		Electrode (left Rear)				$ 67.34
20B	W10862323		Electrode (right Front)			Immediately	$ 40.16
20C	W10862324		Electrode (right Rear)			Immediately	$ 69.52
21A	W11677633		Orifice (left Rear)   (Replaces: W10849719)				$ 99.15
21B	W10907868		Orifice (right Front)				$ 90.69
21C	W10907866		Orifice (right Rear)				$ 90.69
2A	W11476218		Top, Main (stainless)   (Replaces: W10842290)				$ 609.03
5A	W11084066		Assembly, Burner (aux) (left Rear)   (Replaces: W10815354)				$ 130.80
5B	W11084064		Assembly, Burner (sr) (right Front)   (Replaces: W10815355)				$ 130.80
8A	W11084048		Knob, Fan (stainless)   (Replaces: W10876699)				$ 80.29
9A	WPW10559475		Knob, Control (stainless)   (Replaces: W10559475)				$ 59.55
NI	W10834700		Harness, Main				$ 167.63
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11083837		Kit, Lp Orifice   (Replaces: W11022461)				$ 172.36
NI	W10835283		Harness, Blower				$ 73.36
NI	W11465762		Harness, Jumper   (Replaces: W10858227)				$ 33.38
NI	W10831977		Cord, Power				$ 112.58
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	W10909126		Kit, Plenum Screw			Immediately	$ 22.14

    View Diagram in Separate Window       Print Part List
