01 - Cover Sheet

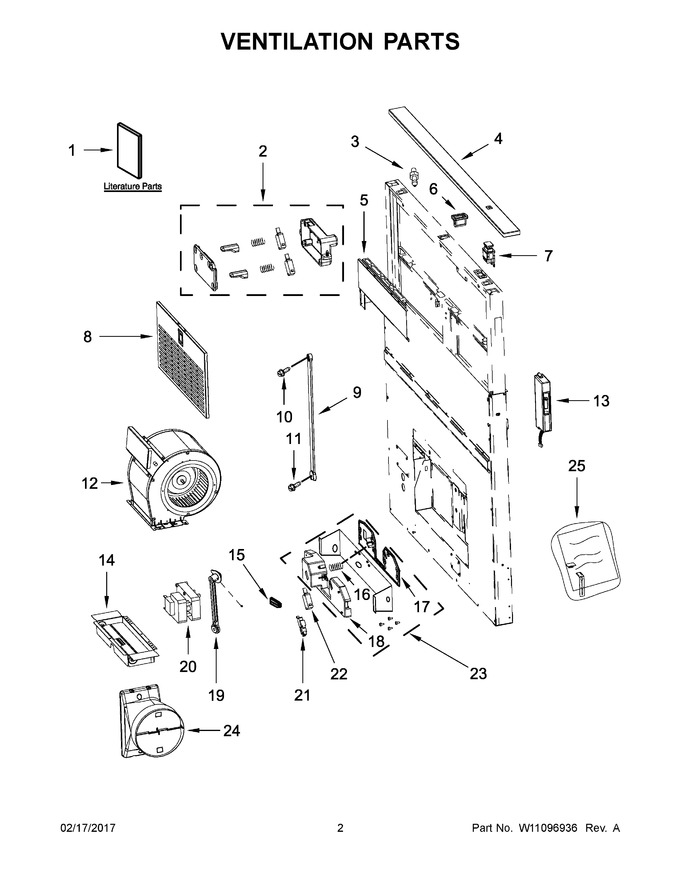

02 - Ventilation Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10342489 | Use And Care Guide / Installation Instructions |
|
- | |||||
| 2 | W11666423 | Kit, Switch Filter (Replaces: W11097349) |
|
Immediately | $ 89.06 | ||||
| 3 | W10421517 | Clip, Top Trim |
|
$ 9.05 | |||||
| 4 | WPW10421498 | Trim, Top (30" Stainless) (Replaces: W10421498) |
|
$ 259.44 | |||||
| 5 | W10798407 | Cover, Front (30" Model) |
|
- | |||||
| 6 | WPW10421518 | Clip, Top Trim (Replaces: W10421518) |
|
$ 9.33 | |||||
| 7 | W11230930 | Button, Control (Replaces: W10899381) |
|
Immediately | $ 106.40 | ||||
| 8 | W10422877 | Filter, Grease (30" Model) |
|
$ 259.08 | |||||
| 9 | WPW10421280 | Arm, Upper (Replaces: W10421280) |
|
$ 100.85 | |||||
| 10 | WPW10422765 | Screw Upper (Replaces: W10422765) |
|
$ 24.77 | |||||
| 11 | WPW10422764 | Screw Lower (Replaces: W10422764) |
|
Immediately | $ 26.92 | ||||
| 12 | W11672683 | Blower, Assembly (Replaces: W10849492) |
|
Immediately | $ 715.00 | ||||
| 13 | W11088943 | Control, Hood (Replaces: W11088233) |
|
Immediately | $ 312.60 | ||||
| 14 | WPW10291572 | Damper, Hood (Replaces: W10291572) |
|
$ 195.58 | |||||
| 15 | WPW10681777 | Cam, Plenum Arm Lower (Replaces: W10681777) |
|
Immediately | $ 75.67 | ||||
| 16 | WPW10469579 | Spring, Button (Replaces: W10469579) |
|
Immediately | $ 20.23 | ||||
| 17 | W11097343 | Cover, Front Switch Holder Plenum Motor |
|
$ 75.27 | |||||
| 18 | W10798401 | Cover, Back Switch Holder Plenum Motor (Replaces: W11097371) |
|
$ 81.88 | |||||
| 19 | WPW10421277 | Arm, Lower (Replaces: W10421277) |
|
Immediately | $ 84.63 | ||||
| 20 | WPW10398274 | Motor, Plenum (Replaces: W10398274) |
|
Immediately | $ 337.92 | ||||
| 21 | WPW10398341 | Microswitch (Replaces: W10398341) |
|
Immediately | $ 79.50 | ||||
| 22 | W11098806 | Microswitch (Replaces: W11097288) |
|
Immediately | $ 161.28 | ||||
| 23 | W10833182 | Assembly, Drive Motor Switch (Replaces: W10801493) |
|
Immediately | $ 174.83 | ||||
| 24 | WPW10313841 | Damper, Hood (Replaces: W10313841) |
|
$ 199.49 | |||||
| 25 | W11188522 | Hardware, Installation (Replaces: W11097358) |
|
Immediately | $ 116.41 | ||||
| 4A | WPW10421497 | Trim, Top (36" Stainless) (Replaces: W10421497) |
|
$ 259.67 | |||||
| 5A | W10421449 | Cover, Front (36" Model) (Replaces: W10798400) |
|
$ 197.56 | |||||
| 8A | W10422876 | Filter, Grease (36" Model) |
|
$ 259.08 | |||||
| NI | W10388170 | Accessories Trim, Top (36" White) |
|
- | |||||
| NI | W10387675 | Accessories Trim, Top (36" Black) |
|
$ 351.88 | |||||
| NI | W11174412 | Accessories, 30" Tape Kit (Replaces: W10798405) |
|
$ 118.09 | |||||
| NI | W11174413 | Accessories, 36" Tape Kit (Replaces: W10798404) |
|
$ 122.22 | |||||
| NI | W10388169 | Accessories Trim, Top (30" White) |
|
- | |||||
| NI | W10387672 | Accessories Trim, Top (30" Black) |
|
$ 307.45 |
