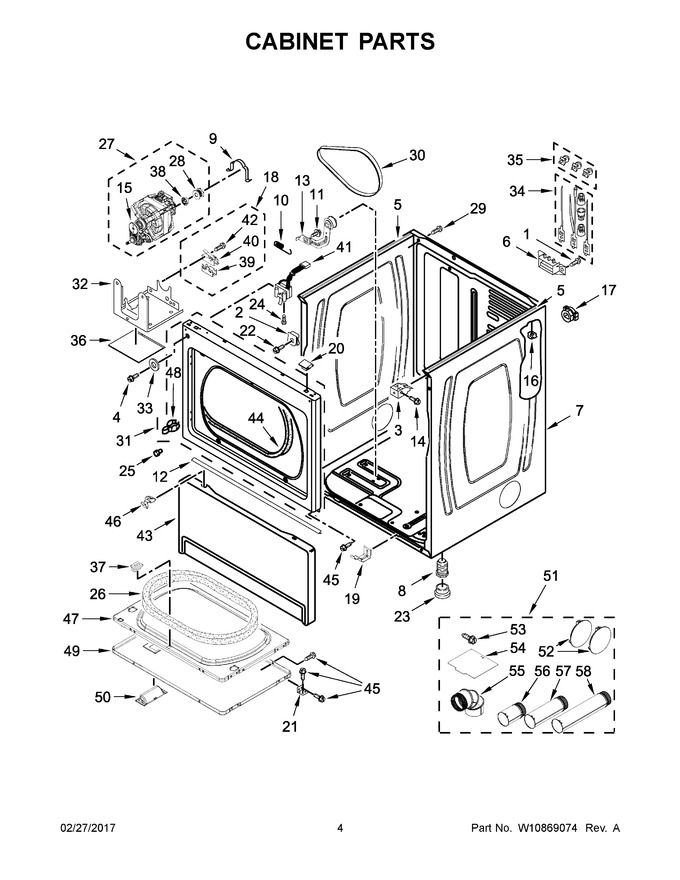

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 2 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 8.10 | |||||
| 3 | 3391846 | Clip, Front Panel |
|
$ 22.21 | |||||
| 4 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 7.29 | |||||
| 5 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 39.71 | |||||
| 6 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 440.17 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W10576519 | Seal, Deflector |
|
- | |||||
| 13 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 94.57 | ||||
| 14 | 681615 | Screw (Replaces: 3391915) |
|
$ 14.57 | |||||
| 15 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 36.99 | ||||
| 16 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 9.09 | |||||
| 17 | W11704629 | Relief, Strain (power Cord) (Replaces: 8316644) |
|
- | |||||
| 18 | W11236387 | Assembly, Switch (Replaces: W10259136) |
|
- | |||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 8.14 | |||||
| 20 | WP345670 | Lock Top (Replaces: 345670) |
|
Immediately | $ 8.09 | ||||
| 21 | WPW10279703 | Assembly, Hinge And Pin (silver) (Replaces: W10279703) |
|
$ 75.83 | |||||
| 22 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 23 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 8.21 | |||||
| 24 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 25 | 693152 | Bumper |
|
$ 11.51 | |||||
| 26 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 137.13 | |||||
| 27 | W11215537 | Assembly, Motor 50 Hz. (Replaces: W10747112) |
|
$ 560.48 | |||||
| 28 | W10167237 | Pulley |
|
- | |||||
| 29 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | W10234293 | Panel, Front |
|
- | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 134.62 | |||||
| 33 | 3391948 | Washer |
|
- | |||||
| 34 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 35 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 36 | W11113654 | Motor, Sound Pad (Replaces: W10836094) |
|
$ 23.29 | |||||
| 37 | 279570 | Assembly, Door Catch (Replaces: 3392538) |
|
Immediately | $ 8.89 | ||||
| 38 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 39 | 8564011 | Bracket, Switch |
|
$ 19.08 | |||||
| 40 | W10410873 | Assembly, Switch Actuator |
|
- | |||||
| 41 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 55.64 | ||||
| 42 | 3400934 | Assembly, Screw And Insulator |
|
- | |||||
| 43 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 250.25 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 47 | 280083 | Door, Rear (Replaces: W10323061) |
|
$ 301.37 | |||||
| 48 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 49 | W11663440 | Door, Front (Replaces: W10322546) |
|
$ 272.34 | |||||
| 50 | W11209427 | Handle, Door (Replaces: W10116360) |
|
Immediately | $ 79.54 | ||||
| 51 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting), Kit, Exhaust Vent (Replaces: 279818) |
|
Immediately | $ 76.65 | ||||
| 52 | W10470674 | Multivent Plug (white) (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 53 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 8.28 | ||||
| 54 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 9.41 | |||||
| 55 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 56 | WPW10331278 | Pipe, Exhaust (short) (Replaces: 8563750) |
|
$ 82.90 | |||||
| 57 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 95.95 | |||||
| 58 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
