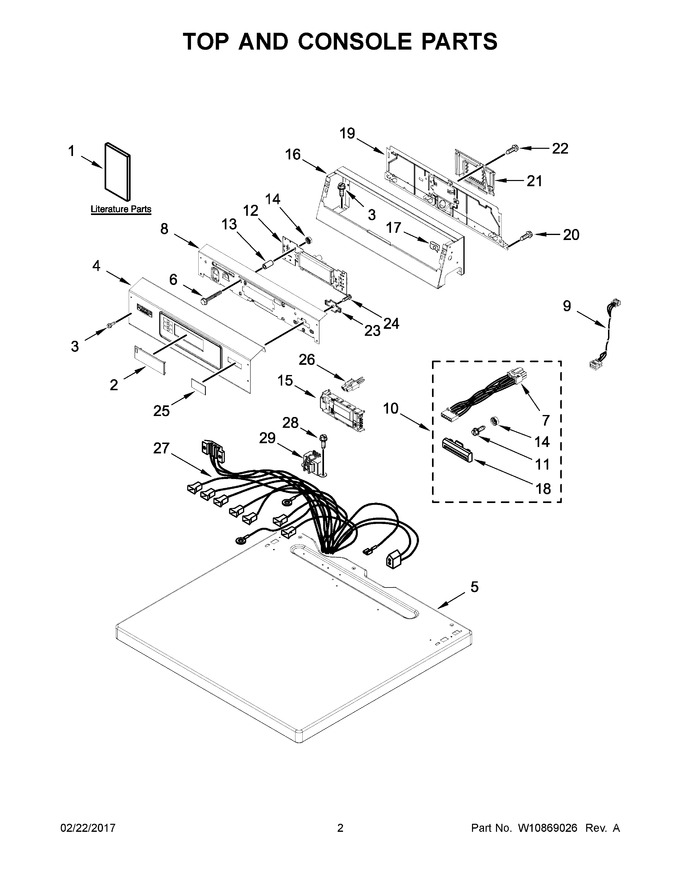

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10868655 | Installation Instructions |
|
- | |||||
| 2 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 69.59 | |||||
| 3 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 7.30 | |||||
| 4 | W11101036 | Fascia (Replaces: W10845284) |
|
$ 546.91 | |||||
| 5 | WPW10136704 | Top (white) (Replaces: W10136704) |
|
$ 273.45 | |||||
| 6 | W11117300 | Screw (Replaces: W10137322) |
|
- | |||||
| 7 | W10858740 | Card Reader, Harness (Replaces: W10133304) |
|
$ 25.16 | |||||
| 8 | W11760232 | Bracket, Control (Replaces: W10845298) |
|
- | |||||
| 9 | W10881678 | Harness, Ui |
|
- | |||||
| 10 | W11502977 | Card Reader, Conversion Kit (Replaces: W10860788) |
|
- | |||||
| 11 | WPW10143462 | Screw (Replaces: W10143462) |
|
$ 6.30 | |||||
| 12 | W11101039 | Control Board (Replaces: W10852653) |
|
$ 355.87 | |||||
| 13 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 14 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 9.23 | |||||
| 15 | WPW10166305 | Control Board (Replaces: W10166305) |
|
$ 193.90 | |||||
| 16 | W11124005 | Console (Replaces: W10461095) |
|
$ 238.42 | |||||
| 17 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 8.10 | |||||
| 18 | WPW10131115 | Bezel (Replaces: W10131115) |
|
$ 8.90 | |||||
| 19 | W10863353 | Panel, Rear (console) |
|
- | |||||
| 20 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 21 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 134.77 | |||||
| 22 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 23 | W11775266 | Retainer, Card Reader Cover (Replaces: W10137770) |
|
- | |||||
| 24 | 3400618 | Screw |
|
$ 67.94 | |||||
| 25 | W11164066 | Cover, Card Reader (Replaces: W10137769) |
|
- | |||||
| 26 | W11129439 | Jumper, Switch Service/vault (Replaces: W10133282) |
|
$ 17.66 | |||||
| 27 | W10864806 | Harness, Main Mde20prayw0 |
|
- | |||||
| 28 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 29 | WPW10131839 | Transformer (Replaces: W10131839) |
|
Immediately | $ 140.23 | ||||
| 1A | W10860796 | Instructions, Installation (card Reader) |
|
- | |||||
| 1B | W10868965 | Tech Sheet |
|
- | |||||
| 1C | W10868768 | Wiring Diagram Mde20prayw0 |
|
- | |||||
| 1D | W10868769 | Wiring Diagram Mde20prazw0 |
|
- | |||||
| 27A | W10871258 | Harness, Main Mde20prazw0 |
|
- |
