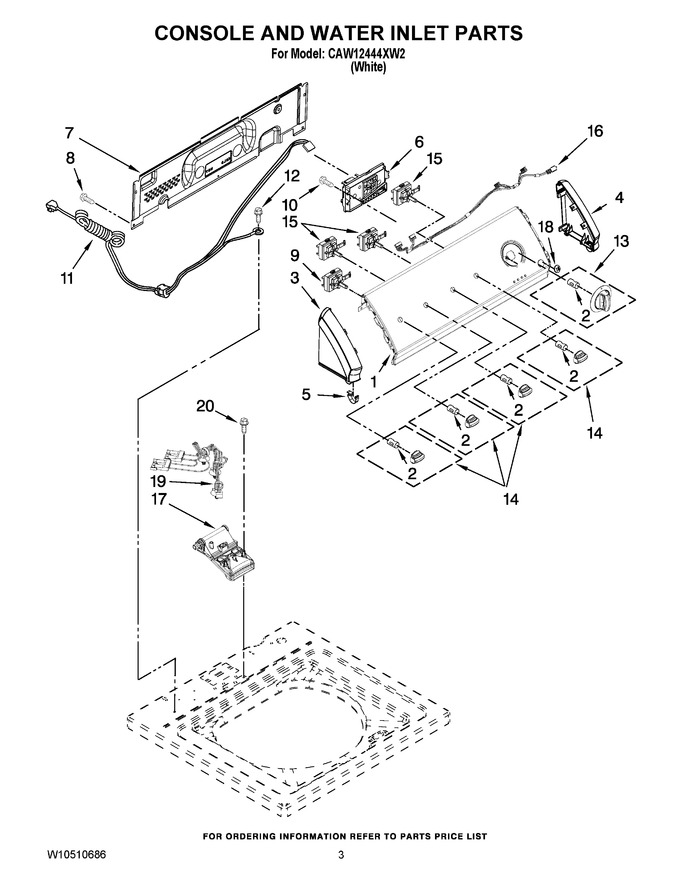

02 - Console And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10317198 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WP8559502 | Cap, End (l.h.) (includes Item 5) (Replaces: 8559502) |
|
$ 72.99 | |||||
| 4 | WP8559501 | Cap, End (r.h.) (includes Item 5) (Replaces: 8559501) |
|
$ 72.77 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W10480294 | Control Unit Assembly, |
|
- | |||||
| 7 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 360.43 | ||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10285512 | Switch, Rotary Encoder (Replaces: W10285512) |
|
Immediately | $ 190.47 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | WPW10525194 | Cord, Power (Replaces: W10276649) |
|
$ 163.41 | |||||
| 12 | W10846509 | Screw, Power Cord Ground (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W10317457 | Knob, Timer |
|
- | |||||
| 14 | W10317458 | Knob, Control |
|
- | |||||
| 15 | WPW10285511 | Switch, Rotary Encoder (Replaces: W10285511) |
|
Immediately | $ 182.10 | ||||
| 16 | WPW10291176 | Harness, Upper (Replaces: W10291176) |
|
$ 173.29 | |||||
| 17 | WPW10683603 | Inlet Assembly, Water (Replaces: W10423125) |
|
Immediately | $ 81.56 | ||||
| 18 | W10272474 | Push Button, Start |
|
- | |||||
| 19 | W10876654 | Harness, Valve (Replaces: W10423127) |
|
$ 194.92 | |||||
| 20 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 |
