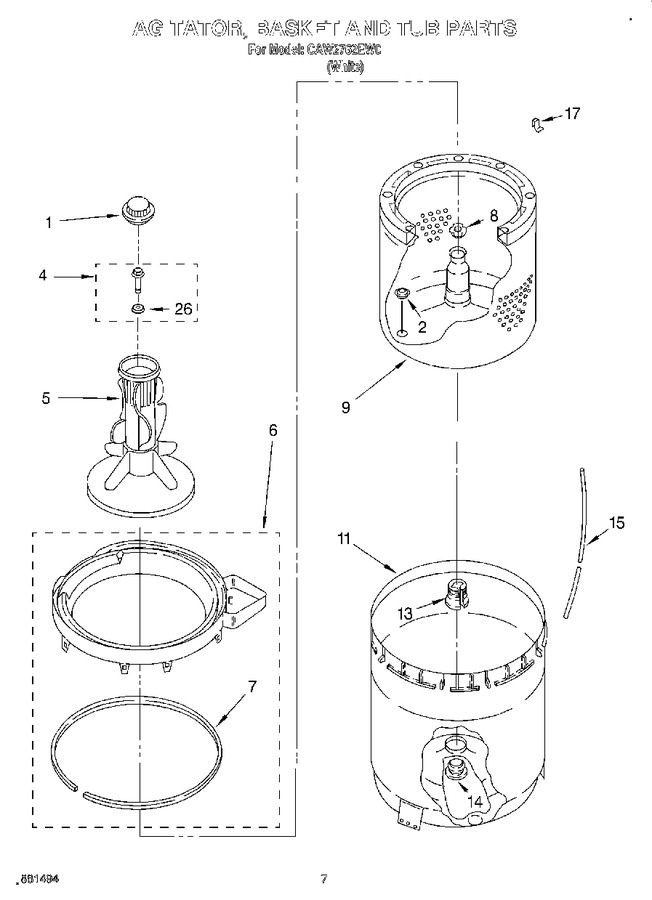

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355758) |
|
Immediately | $ 9.00 | ||||
| 2 | 3352284 | Snap-in-plugs |
|
- | |||||
| 4 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 5 | 3350151 | Agitator |
|
- | |||||
| 6 | 3360611 | Tub Ring |
|
$ 88.45 | |||||
| 7 | WP3359586 | Gasket, Tub Ring (Replaces: 3359586) |
|
$ 94.63 | |||||
| 8 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 9 | 3354915 | Basket |
|
- | |||||
| 11 | 63125 | Tub |
|
$ 234.68 | |||||
| 13 | WP389140 | Block, Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 14 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.98 | ||||
| 15 | WP353244 | Hose, Pressure Switch (Replaces: 353405) |
|
Immediately | $ 59.93 | ||||
| 17 | 387868 | Balance Ring |
|
- | |||||
| 26 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 |
