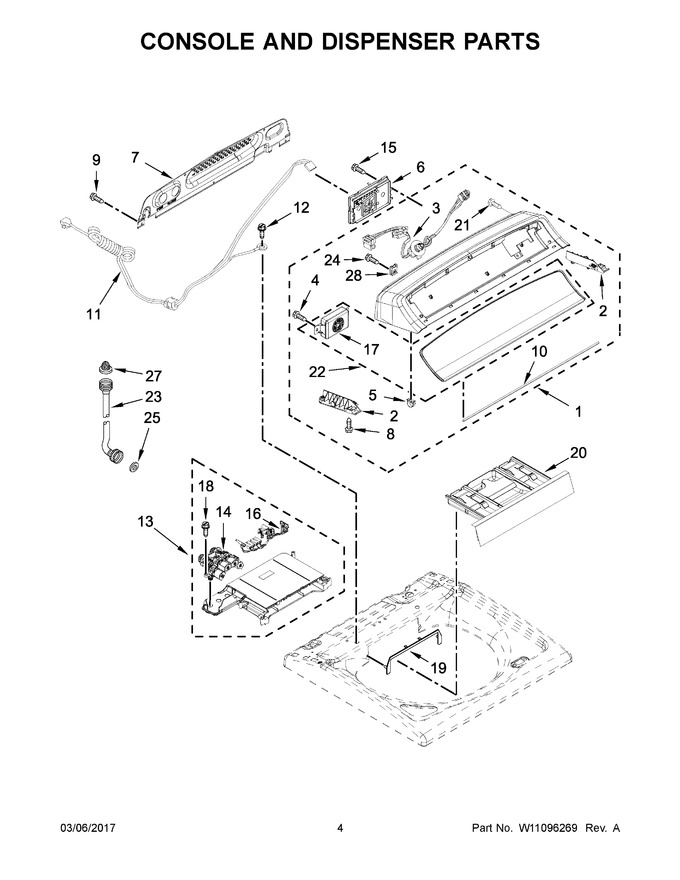

03 - Console And Dispenser Parts
04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10838672 | Console (chrome Shadow) (Replaces: W10607414) |
|
$ 537.50 | |||||
| 2 | W10631630 | Console Mount (left) |
|
$ 153.63 | |||||
| 3 | W10915405 | Harness, Ui (Replaces: W10596717) |
|
$ 11.17 | |||||
| 4 | W10728156 | Screw |
|
- | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 17.40 | ||||
| 6 | W10894390 | Control Unit Assembly, Machine And Motor |
|
- | |||||
| 7 | W10611544 | Panel, Console Rear Cover |
|
$ 341.23 | |||||
| 8 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 9 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 10 | W10726624 | Seal, Console |
|
$ 32.26 | |||||
| 11 | W11096073 | Cord, Power (Replaces: W10770108) |
|
$ 126.62 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W11173599 | Assembly, Housing (Replaces: W10854687) |
|
$ 381.77 | |||||
| 14 | W11165546 | Valve, Water Inlet (Replaces: W10758828) |
|
Immediately | $ 116.01 | ||||
| 15 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 16 | W11193817 | Harness, Valve (Replaces: W10849297) |
|
Immediately | $ 186.35 | ||||
| 17 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 18 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 19 | W10601876 | Assembly, Dispenser Bezel (chrome Shadow) (Replaces: W10601860) |
|
$ 31.03 | |||||
| 20 | W11129928 | Assembly, Dispenser Drawer (chrome Shadow) (Replaces: W10795358) |
|
$ 109.83 | |||||
| 21 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 22 | W11115199 | Assembly, Console Fascia (Replaces: W10507937) |
|
$ 581.64 | |||||
| 23 | WP89503 | Hose, Water Inlet (cold) (Replaces: W10194210) |
|
Immediately | $ 24.09 | ||||
| 24 | W11700520 | Screw (Replaces: 3400061) |
|
$ 14.28 | |||||
| 25 | WP16123 | Washer, Hose (Replaces: W10242307) |
|
$ 8.16 | |||||
| 26 | WP16123 | Washer, Inlet Hose (Replaces: 3976300) |
|
$ 8.16 | |||||
| 27 | 285452A | Washer, Filter (Replaces: W10810281) |
|
Immediately | $ 9.69 | ||||
| 28 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 23A | WP89503 | Hose, Water Inlet (hot) (Replaces: W10194211) |
|
Immediately | $ 24.09 | ||||
| 2A | W10631629 | Console Mount (right) |
|
- |
