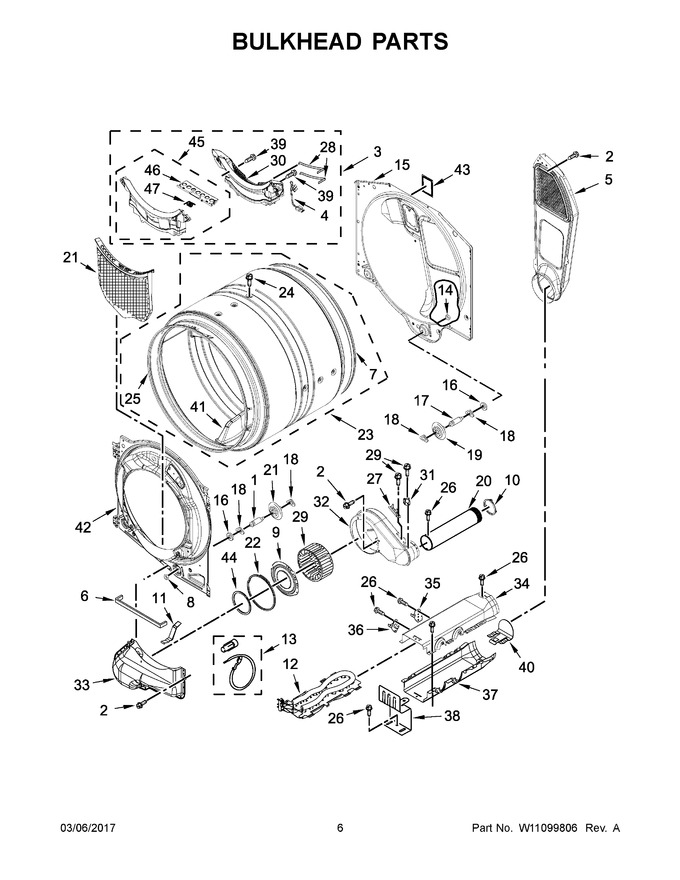

04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | W10906551 | Assembly, Outlet Grill And Housing (Replaces: W10672683) |
|
Immediately | $ 335.53 | ||||
| 4 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 5 | WP3387911 | Assembly, Air Duct (Replaces: 697354) |
|
$ 327.31 | |||||
| 6 | W11676493 | Seal, Housing Outlet (Replaces: W10211950) |
|
Immediately | $ 29.03 | ||||
| 7 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | W10211901 | Assembly, Collar |
|
$ 94.08 | |||||
| 10 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 85.70 | |||||
| 11 | W10414388 | Clip, Lint Duct |
|
$ 14.56 | |||||
| 12 | WP8544771 | Heater Element (Replaces: W10836011) |
|
Immediately | $ 136.60 | ||||
| 13 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 14 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 15 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 367.62 | |||||
| 16 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 17 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 18 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 9.68 | ||||
| 19 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 20 | WPW10342188 | Exhaust Pipe (Replaces: W10342188) |
|
Immediately | $ 139.40 | ||||
| 21 | W11758174 | Screen, Lint (white) (Replaces: W10516085) |
|
Immediately | $ 53.90 | ||||
| 22 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 23 | W10508188 | Assembly, Drum (complete) |
|
$ 396.61 | |||||
| 24 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 25 | W11193479 | Seal, Drum Front (Replaces: W10521122) |
|
Immediately | $ 22.62 | ||||
| 26 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 27 | W10909685 | Fuse, Thermal (91c) (Replaces: W10693363) |
|
Immediately | $ 88.43 | ||||
| 28 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.94 | ||||
| 29 | WP697772 | Wheel, Blower (Replaces: W10211915) |
|
Immediately | $ 81.98 | ||||
| 30 | W11125442 | Grill, Outlet (Replaces: W10672682) |
|
$ 236.44 | |||||
| 31 | WP8557403 | Thermostat, High Limit (Replaces: 8557403) |
|
Immediately | $ 95.44 | ||||
| 32 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 149.69 | ||||
| 33 | WPW10211896 | Assembly, Lint Duct (Replaces: W10211896) |
|
$ 219.70 | |||||
| 34 | WP8544769 | Housing Slot, Heater Box (Replaces: 8544769) |
|
$ 173.90 | |||||
| 35 | 280148 | Kit, Thermal Cut-off (includes Thermostat) |
|
Immediately | $ 67.61 | ||||
| 36 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 37 | 8544770 | Housing Tab, Heater Box |
|
$ 75.92 | |||||
| 38 | 8066099 | Bracket, Heater Box |
|
$ 26.81 | |||||
| 39 | W11590579 | Screw (Replaces: W10794806) |
|
$ 14.73 | |||||
| 40 | 8544776 | Flange, Heater Box |
|
$ 19.01 | |||||
| 41 | W11841932 | Bafffle, Drum (Replaces: W10416098) |
|
$ 39.96 | |||||
| 42 | W11712678 | Bulkhead, Front (Replaces: W10673493) |
|
Immediately | $ 250.72 | ||||
| 43 | W11409002 | Pad, Foam (Replaces: W10653662) |
|
$ 23.76 | |||||
| 44 | W11821372 | Seal, Blower Cover (Replaces: W10211899) |
|
$ 22.39 | |||||
| 45 | W10905013 | Assembly, Housing And Door (Replaces: W10672681) |
|
$ 226.36 | |||||
| 46 | W11156832 | Door, Lint Screen (Replaces: W10672680) |
|
Immediately | $ 70.79 | ||||
| 47 | W11678124 | Spring, Lint Screen Door (Replaces: W10726027) |
|
$ 15.19 |
