01 - Cover Sheet

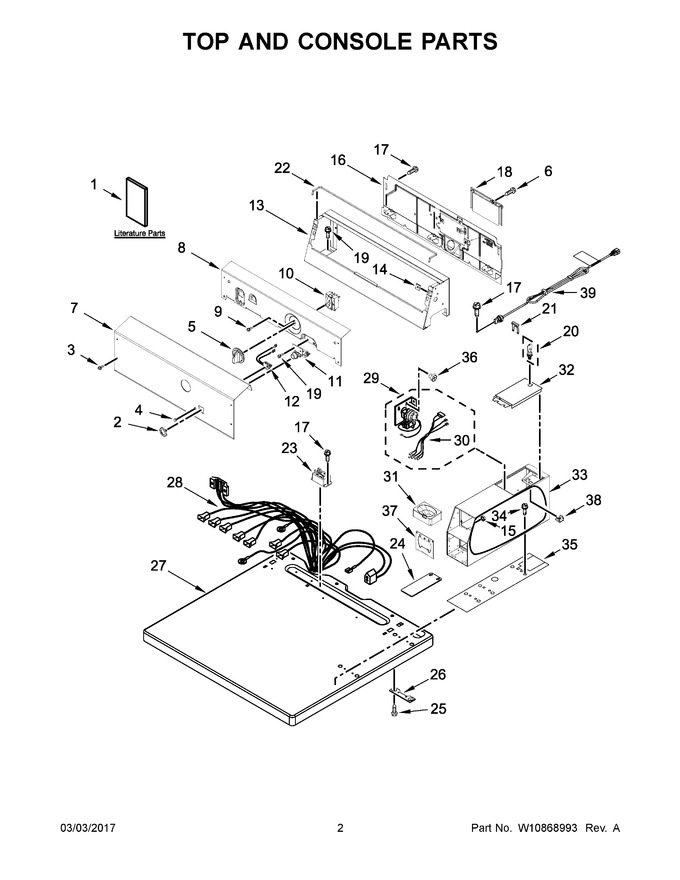

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10868678 | Installation Instructions |
|
- | |||||
| 2 | W10510149 | Bezel - Pts |
|
Immediately | $ 28.63 | ||||
| 3 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 7.30 | |||||
| 4 | WPW10133502 | Indicator Lights Assembly (Replaces: W10133502) |
|
$ 13.51 | |||||
| 5 | W10492415 | Knob |
|
$ 20.62 | |||||
| 6 | WP90767 | Screw (Replaces: W10748311) |
|
Immediately | $ 8.25 | ||||
| 7 | W11104005 | Fascia (Replaces: W10845276) |
|
- | |||||
| 8 | W10461070 | Bracket Control |
|
$ 148.97 | |||||
| 9 | W10139100 | Screw |
|
$ 13.01 | |||||
| 10 | W10327100 | Switch, Cycle Selection |
|
$ 215.07 | |||||
| 11 | W11097274 | Switch, Push To Start (Replaces: W10424310) |
|
$ 70.83 | |||||
| 12 | W10139459 | Lamp, Indicator |
|
- | |||||
| 13 | W10461094 | Console |
|
$ 186.63 | |||||
| 14 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 8.10 | |||||
| 15 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 16 | W11089934 | Panel, Rear (console) (Replaces: W10863354) |
|
$ 299.65 | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 18 | W10601020 | Cover, Terminal Block |
|
- | |||||
| 19 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 20 | W11315637 | 777 Lock And Key, Complete (Replaces: 8316526) |
|
Immediately | $ 40.47 | ||||
| 21 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 22 | W10181918 | Seal, Plate Cover |
|
- | |||||
| 23 | WP1188043 | Relay, Heater 230v (Replaces: 1188043) |
|
$ 115.64 | |||||
| 24 | WPW10153513 | Extension (Replaces: W10153513) |
|
$ 86.99 | |||||
| 25 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 26 | 3347825 | Plate, Mounting |
|
- | |||||
| 27 | WPW10136707 | Top (white) (Replaces: W10136707) |
|
$ 373.98 | |||||
| 28 | W10864824 | Harness, Main |
|
- | |||||
| 29 | W11104007 | Timer & Harness Assembly (Replaces: W10900032) |
|
- | |||||
| 30 | W10914362 | Harness, Timer |
|
- | |||||
| 31 | WP385421 | Funnel, Coin (Replaces: 385421) |
|
Immediately | $ 77.91 | ||||
| 32 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 111.17 | |||||
| 33 | WPW10461200 | Case, Meter (Replaces: W10461200) |
|
Immediately | $ 402.38 | ||||
| 34 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 7.48 | |||||
| 35 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 32.66 | |||||
| 36 | 339805 | Screw |
|
$ 14.06 | |||||
| 37 | 279950 | Plate, Adapter (Replaces: 3954761) |
|
Immediately | $ 28.89 | ||||
| 38 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 9.09 | |||||
| 39 | WPW10476824 | Cord, Power (not Illustrated) (Replaces: W10476824) |
|
$ 27.24 | |||||
| 1A | W10868687 | Use And Care Guide |
|
- | |||||
| 1B | W10868690 | Installation Instructions, Card Reader |
|
- | |||||
| 1C | W10868956 | Wiring Diagram |
|
- | |||||
| NI | W10446855 | 10a Cord Lock |
|
- | |||||
| NI | W11384794 | 10a Cord Adaptor (austrailian) (Replaces: W10476818) |
|
- | |||||
| NI | WPW10476820 | 10a Cord Adapter (british) (Replaces: W10476820) |
|
$ 28.04 | |||||
| NI | WPW10476822 | 10a Cord Adapter (european) (Replaces: W10476822) |
|
$ 80.90 |
