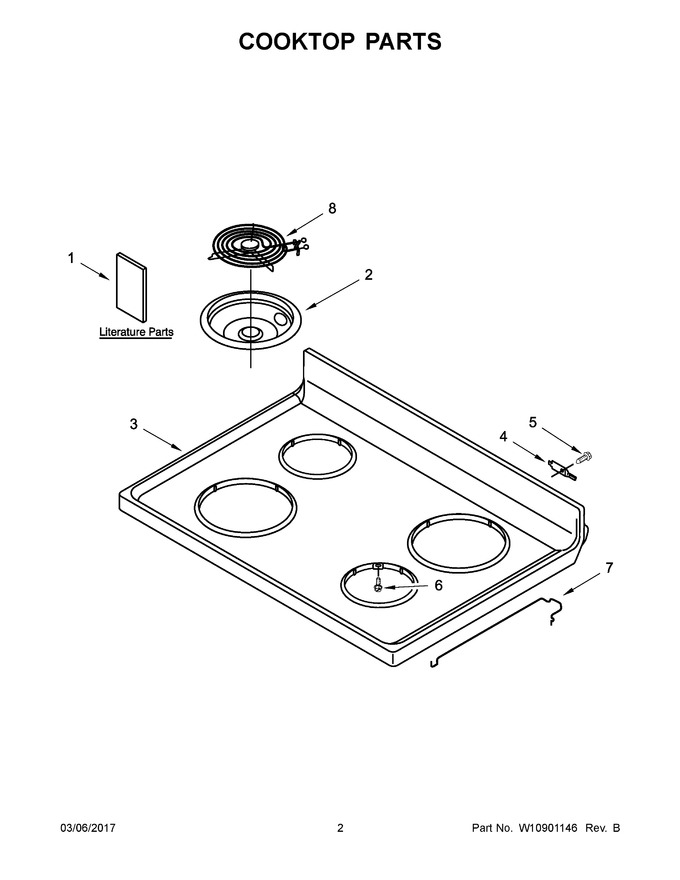

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403811		Instructions, Installation		Appelez-nous	-
2	WPW10196406		Bowl, Drip (6") (right Front And Left Rear)   (Replaces: W10196406)			Immediately	$ 13.39
3	8195532		Cooktop (white)   (Replaces: 3186231)				$ 419.31
4	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
7	WP3195812		Rod, Support   (Replaces: 3195812)			Immediately	$ 8.73
8	W11168414		Element, Surface (6") (right Front And Left Rear)   (Replaces: W10259870)			Immediately	$ 154.49
1A	W10866292		User Instructions		Appelez-nous	-
1B	W10563073		Tech Sheet (english)		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2A	WPW10196405		Bowl, Drip (8") (left Front And Right Rear)   (Replaces: W10196405)			Immediately	$ 17.29
8A	W11161939		Element, Surface (8") (left Front And Right Rear)   (Replaces: W10259867)			Immediately	$ 168.63
NI	W11396691		Harness, Cooktop   (Replaces: W10279107)				$ 189.76
NI	3184020		Wire, Ground   (Replaces: 311227)				$ 86.92
NI	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87
NI	313660		Clip, Ground Wire		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11616883		Harness, Main   (Replaces: W10349732)				$ 176.90
