View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts

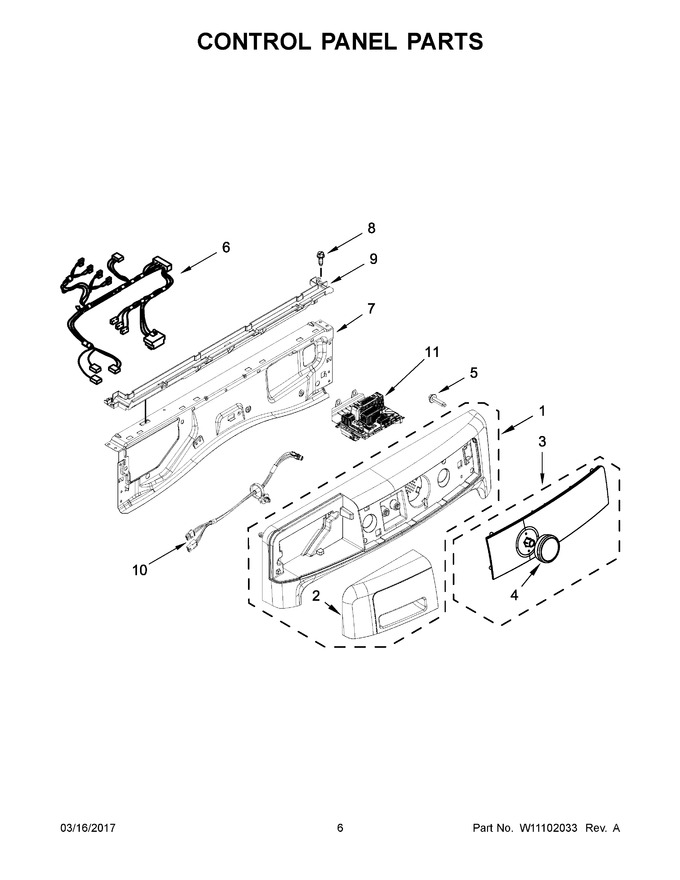

04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11218376 | Assembly, Console (white) (Replaces: W10784655) |
|
$ 388.49 | |||||
| 2 | W11254812 | Handle, Drawer (white) (Replaces: W10784654) |
|
$ 110.78 | |||||
| 3 | W10911042 | Assembly, Iml (white) (Replaces: W10825105) |
|
Immediately | $ 386.72 | ||||
| 4 | W10853910 | Assembly, Control Knob (chrome) (Replaces: W10727011) |
|
$ 53.94 | |||||
| 5 | W10489172 | Screw |
|
$ 11.98 | |||||
| 6 | W10685628 | Harness, Main (upper) |
|
$ 163.70 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10653575) |
|
$ 90.94 | |||||
| 10 | W10580186 | Harness, Ui |
|
$ 40.80 | |||||
| 11 | W10885571 | Control Unit, Appliance |
|
- | |||||
| 1A | W10783707 | Assembly, Console (chrome Shadow) |
|
$ 306.34 | |||||
| 2A | W10783705 | Handle, Drawer (chrome Shadow) |
|
$ 66.44 | |||||
| 3A | W10911044 | Assembly, Iml (chrome Shadow) (Replaces: W10825107) |
|
$ 703.85 |
