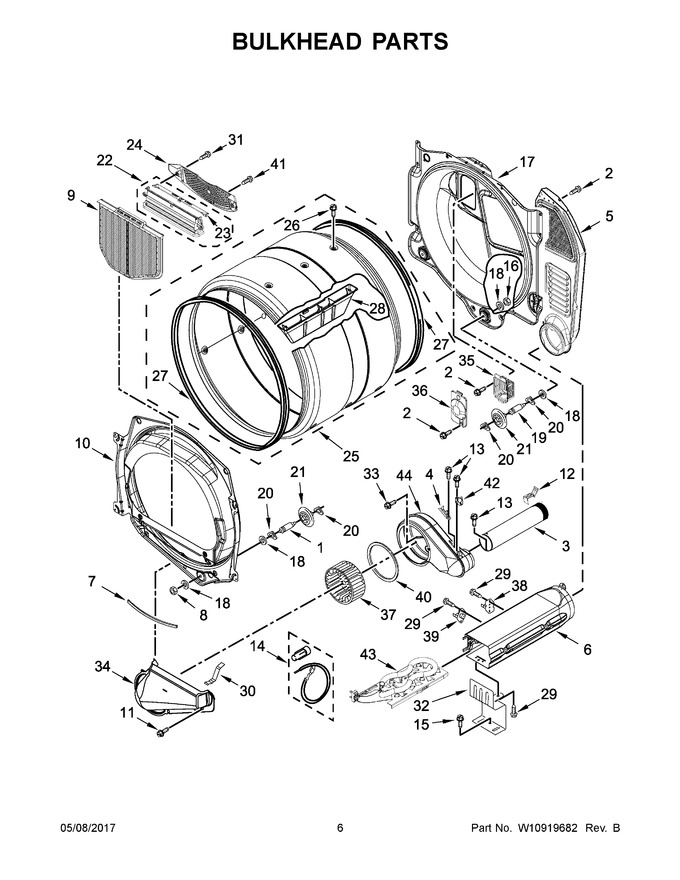

04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 55.99 | ||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 3 | WP8563728 | Pipe, Exhaust (Replaces: 8563728) |
|
$ 130.36 | |||||
| 4 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 5 | WP3387911 | Assembly, Air Duct (Replaces: 697354) |
|
$ 294.58 | |||||
| 6 | W10802681 | Assembly, Weld Heater Box (Replaces: W10608837) |
|
Immediately | $ 180.98 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.53 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 11.49 | |||||
| 9 | W10120998 | Lint Screen (white) (Replaces: W10596627) |
|
$ 74.66 | |||||
| 10 | 8565061 | Bulkhead, Front |
|
$ 228.26 | |||||
| 11 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 13.28 | ||||
| 12 | W11684573 | Clip, Exhaust (Replaces: 8572105) |
|
$ 7.35 | |||||
| 13 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 14 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 17 | WPW10080170 | Bulkhead, Rear (Replaces: W10080170) |
|
$ 320.78 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 25.65 | ||||
| 22 | W11219327 | Assembly, Outlet Housing (Replaces: W10153423) |
|
$ 85.56 | |||||
| 23 | W11222846 | Door, Lint Screen (Replaces: W10153413) |
|
Immediately | $ 192.52 | ||||
| 24 | W11086603 | Grille, Outlet (Replaces: W10153412) |
|
Immediately | $ 33.21 | ||||
| 25 | W10865330 | Assembly, Drum (complete) |
|
$ 354.06 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 63.74 | ||||
| 28 | W10852390 | Baffle, Drum (Replaces: W10153409) |
|
$ 131.68 | |||||
| 29 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 30 | WP8066208 | Clip, Spring (Replaces: W10345456) |
|
$ 7.95 | |||||
| 31 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 32 | 8066099 | Bracket, Heater Box |
|
$ 24.13 | |||||
| 33 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| 34 | WPW10128606 | Assembly, Lint Duct (Replaces: 8066168) |
|
$ 195.73 | |||||
| 35 | 8578825 | Bracket, Drum Light |
|
$ 19.73 | |||||
| 36 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 29.38 | |||||
| 37 | WPW10349492 | Wheel, Blower (Replaces: W10349492) |
|
Immediately | $ 147.43 | ||||
| 38 | 279973 | Kit, Thermal Cut-off (includes Thermostat |
|
Immediately | $ 68.04 | ||||
| 39 | WP3391914 | Thermostat Hl-295/215 (Replaces: 3391914) |
|
Immediately | $ 107.52 | ||||
| 40 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 7.44 | ||||
| 41 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 7.45 | ||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 39.25 | ||||
| 43 | W10864898 | Element, Heater (Replaces: W10832958) |
|
$ 302.04 | |||||
| 44 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 96.11 |
