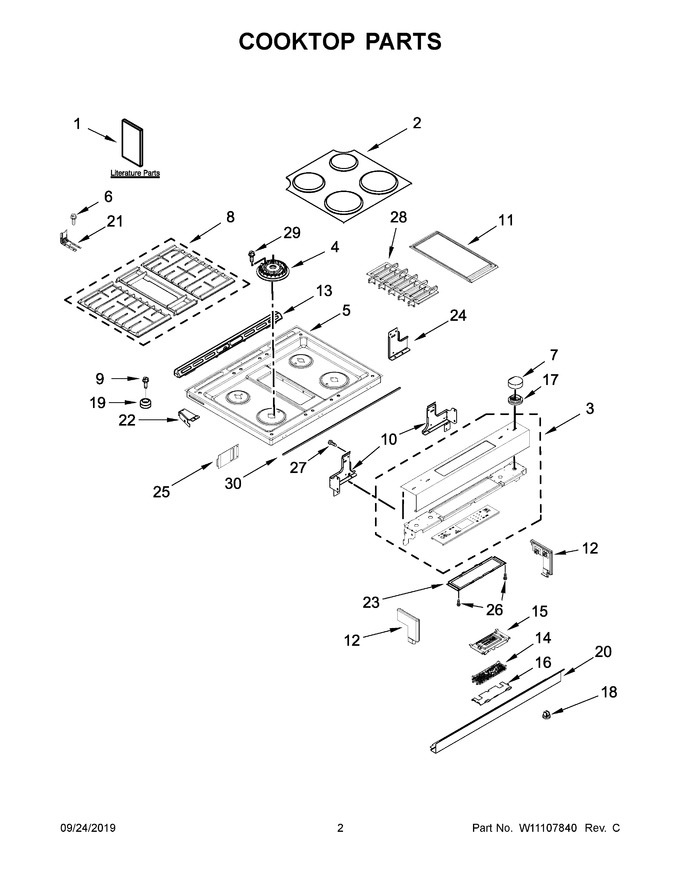

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Blower Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11259377 | Instructions, Installation |
|
- | |||||
| 2 | WPW10300347 | Kit, Burner Cap (black) (Replaces: W10300347) |
|
Immediately | $ 222.26 | ||||
| 3 | W11038823 | Console (black) (Replaces: W10901069) |
|
$ 776.46 | |||||
| 4 | W11238353 | Spreader, Flame (left Front & Right Front) (Replaces: W10556378) |
|
$ 126.38 | |||||
| 5 | W10819203 | Cooktop (black) (Replaces: W10482049) |
|
- | |||||
| 6 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 7 | W10505765 | Knob (black) |
|
- | |||||
| 8 | W11211507 | Kit, Grate (black) (Replaces: W10752103) |
|
$ 352.58 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 10 | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 11 | W10432544 | Griddle |
|
Immediately | $ 56.67 | ||||
| 12 | W10557750 | Endcap (black (left)) |
|
$ 142.98 | |||||
| 13 | W11240519 | Trim, Vent (black) (Replaces: W10636528) |
|
$ 157.19 | |||||
| 14 | W11295990 | Control, Mrc2 (Replaces: W11254182) |
|
Immediately | $ 514.49 | ||||
| 15 | W11108634 | Display, Assembly (Replaces: W10759326) |
|
$ 589.61 | |||||
| 16 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 17 | W10490680 | Bezel (black) |
|
$ 134.59 | |||||
| 18 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 13.16 | ||||
| 19 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 20 | W10743280 | Console, Lower Panel (black) |
|
- | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 23.03 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 23 | W10557780 | Bracket , Control |
|
$ 36.68 | |||||
| 24 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 25 | W10752321 | Shield, Keypad |
|
- | |||||
| 26 | W11233072 | Screw, Handle (Replaces: 7101P428-60) |
|
Immediately | $ 14.72 | ||||
| 27 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 28 | W10752102 | Grill, Air (black) |
|
$ 239.28 | |||||
| 29 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 30 | W10802441 | Gasket, Console/cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 10A | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 12A | W10557751 | Endcap (stainless (left)) |
|
$ 168.85 | |||||
| 12B | W10557753 | Endcap (black (right)) |
|
- | |||||
| 12C | W10557754 | Endcap (stainless (right)) |
|
$ 168.85 | |||||
| 13A | W11170796 | Trim, Vent (stainless) (Replaces: W10636529) |
|
Immediately | $ 145.75 | ||||
| 17A | W11028784 | Bezel (stainless) (Replaces: W10490679) |
|
Immediately | $ 61.99 | ||||
| 1A | W11123986 | Guide, Use And Care |
|
- | |||||
| 1B | W10844271 | Sheet, Tech |
|
- | |||||
| 1C | W10902654 | Diagram, Wiring |
|
- | |||||
| 1D | W11120467 | Guide, Quick Start (burner Caps) |
|
- | |||||
| 1E | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 1F | W10400067 | Guide, Quick Start (french) |
|
- | |||||
| 1G | W11643128 | Template, Downdraft (Replaces: W10817089) |
|
$ 14.41 | |||||
| 20A | W10743281 | Console, Lower Panel (stainless) |
|
- | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 3A | W11039015 | Console (stainless) (Replaces: W10901068) |
|
$ 891.82 | |||||
| 4A | W10556377 | Spreader, Flame (right Rear) |
|
$ 88.62 | |||||
| 4B | W10556381 | Spreadder, Flame (left Rear) |
|
$ 93.27 | |||||
| 5A | W10803780 | Cooktop (stainless) (Replaces: W10482062) |
|
- | |||||
| 7A | WPW10505764 | Knob (stainless) (Replaces: W10505764) |
|
$ 127.72 | |||||
| NI | W11175842 | Suppressor (Replaces: W10653092) |
|
Immediately | $ 105.04 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | ||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 224.96 | ||||
| NI | W10911851 | Harness, Main |
|
Immediately | $ 249.85 | ||||
| NI | W11198274 | Harness, Down Draft Fan Jumper |
|
$ 117.73 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 |
