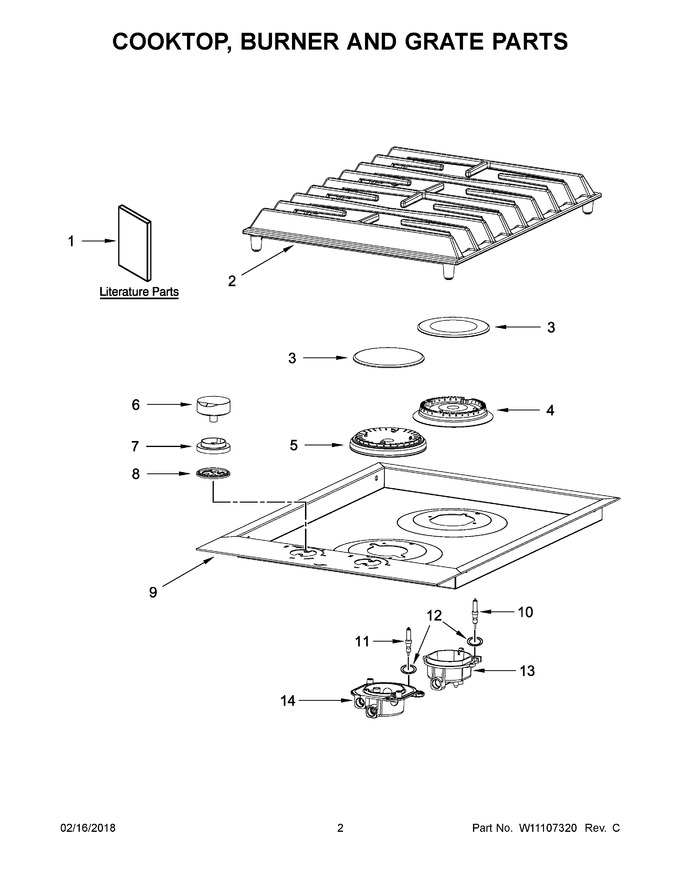

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11030506 | Installation Instructions |
|
- | |||||
| 2 | W11043450 | Grate, Burner |
|
$ 422.46 | |||||
| 3 | W10691232 | Cap, Burner (black (large)) |
|
Immediately | $ 173.80 | ||||
| 4 | W11043462 | Base, Burner (large) |
|
Immediately | $ 221.20 | ||||
| 5 | W11043467 | Base, Burner (dual) |
|
$ 384.92 | |||||
| 6 | W11045335 | Knob (Replaces: W11042532) |
|
Immediately | $ 92.79 | ||||
| 7 | W10618500 | Bezel, Knob (stainless) |
|
Immediately | $ 163.99 | ||||
| 8 | W11042557 | Bezel, Illuminator |
|
Immediately | $ 63.47 | ||||
| 9 | W11043514 | Cooktop, Main |
|
- | |||||
| 10 | W10692364 | Electrode (500mm) |
|
$ 143.30 | |||||
| 11 | W10692365 | Electrode (360mm) (Replaces: W11108755) |
|
$ 88.24 | |||||
| 12 | W10571930 | Clip, Electrode |
|
Immediately | $ 25.33 | ||||
| 13 | WPW10571493 | Holder, Orifice (170mm) (Replaces: W10571493) |
|
$ 85.56 | |||||
| 14 | W11110811 | Holder, Orifice (dual, 170mm) (Replaces: W11108757) |
|
- | |||||
| 1A | W11027460 | Use And Care Guide |
|
- | |||||
| 1B | W11032198 | Lp Conversion Instructions |
|
- | |||||
| 3A | W10691282 | Cap, Burner (black (dual)) |
|
$ 160.59 | |||||
| NI | W11027216 | Kit, Lp Conversion |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11027217 | Kit, Lp Conversion (high Altitude) |
|
- | |||||
| NI | W11027218 | Kit, Natural Gas (high Altitude) |
|
- |
