SELECT A DIAGRAM

01 - Cover Sheet

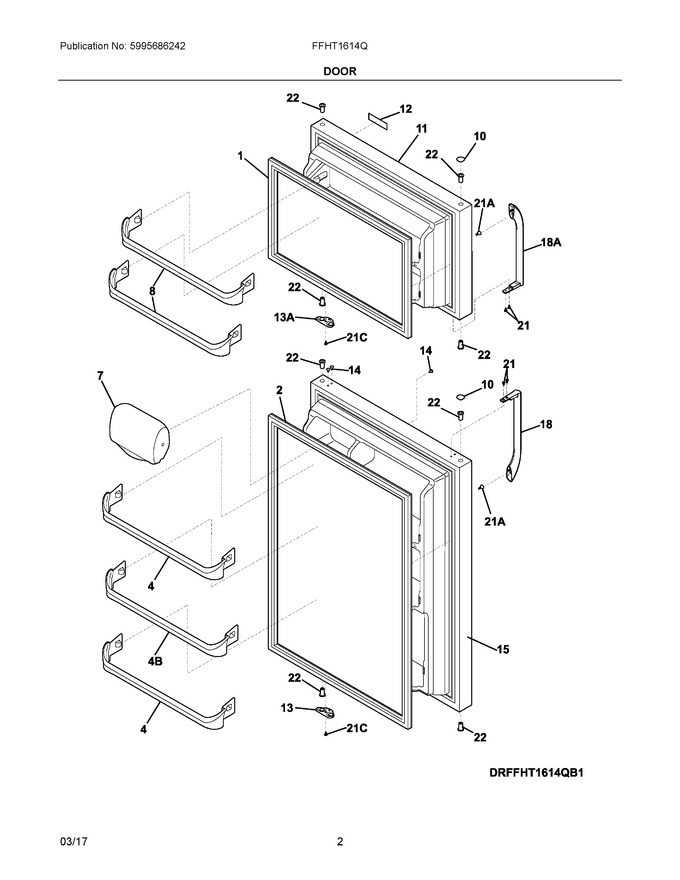

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193201		Gasket, Freezer Door, White, Magnetic			Immediately	$ 216.64
2	242193204		Gasket-refr Door, White, Magnetic			Immediately	$ 200.04
4	240535101		Rack-door			Immediately	$ 31.74
7	240337712		Door-dairy			Immediately	$ 40.45
8	240535001		Rack-door			Immediately	$ 53.55
10	240381302		Plug-button, Bisque, Hinge Brg Hole, (2)				$ 19.06
11	807460011		Freezer Door, Complete, Bisque		Appelez-nous	-
12	242016301		Nameplate, Frigidaire				$ 4.73
13	240312423		Door Stop, Bisque, Ref   (Replaces: 240312407)				$ 13.48
14	240494002		Plug-button, Bisque				$ 41.12
15	807460112		Refrigerator Door, Complete, Bisque		Appelez-nous	-
18	5304510825		S/a Pur-door Handle Rh Bisque		Appelez-nous	-
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507146		Bearing-hinge, Natural, (8)			Immediately	$ 8.43
13A	240312416		Door Stop, Bisque, Frzr		Appelez-nous	-
18A	5304510826		S/a Pur-door Handle Lh Bisque		Appelez-nous	-
21A	240521303		Screw, #10-16 X 1/2			Immediately	$ 33.55
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
4B	240535201		Rack-door			Immediately	$ 33.71

    View Diagram in Separate Window       Print Part List
