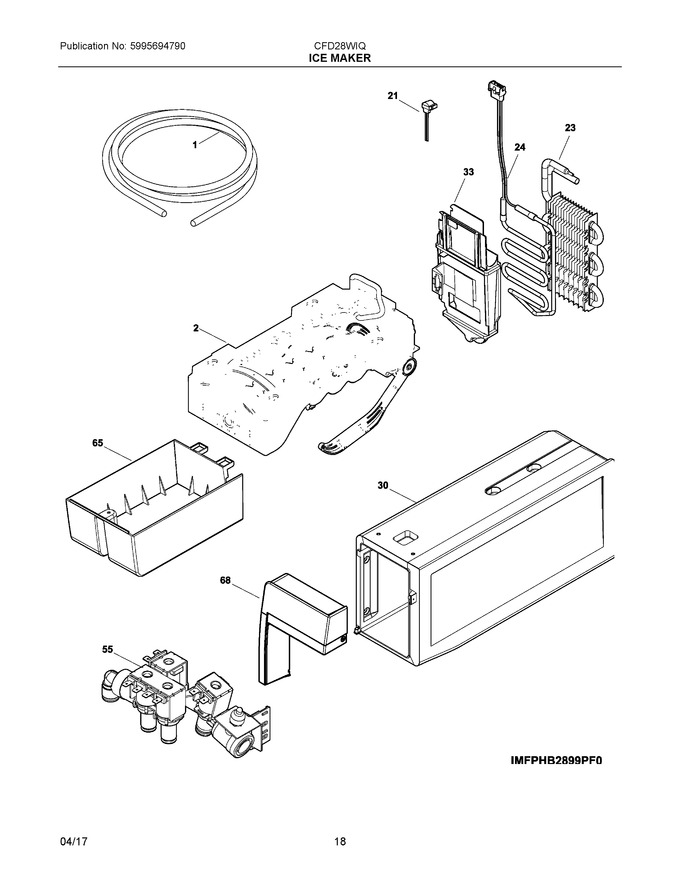

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976436 | Tube-water, 5/16-42", Yellow, Valve To, Back Connector (Replaces: 218976434) |
|
Immediately | $ 9.45 | ||||
| 2 | 243297613 | Ice Maker, Complete, 115 V (Replaces: 243297606) |
|
Immediately | $ 130.73 | ||||
| 21 | 5303918810 | Thermostat, Defrost Safety, Ice Maker (Replaces: 808113301) |
|
Immediately | $ 48.88 | ||||
| 23 | 242094701 | Evaporator, Assembly, Ice Maker |
|
$ 58.28 | |||||
| 24 | 242094802 | Heater-defrost |
|
Immediately | $ 126.58 | ||||
| 30 | 242142203 | Cover, Icmkr & Bucket |
|
$ 239.77 | |||||
| 33 | 242094401 | Housing-evaporator |
|
$ 6.39 | |||||
| 55 | 242253002 | Valve-water, Quad Solenoid |
|
Immediately | $ 271.94 | ||||
| 65 | 808456301 | Cover, Wiring |
|
$ 83.79 | |||||
| 68 | 242095002 | Cover, -front, Bucket Trim |
|
$ 105.36 | |||||
| NI | 218515401 | Clip-grille |
|
$ 19.69 | |||||
| NIA | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 7.09 | |||||
| NIA | 5303918784 | Gasket, Housing Funnel, 2.69x 3.05x .25, Top, W/hole (Replaces: 242146001) |
|
Immediately | $ 136.39 | ||||
| NIA | 241695906 | Screw, 10-16ab X 0.50 |
|
$ 21.26 | |||||
| NIA | 5304521762 | Harness, Wiring, Air Handler, W/evap Thrmistr (Replaces: 5304508052) |
|
$ 107.47 | |||||
| NIA | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| NIA | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 15.17 | |||||
| NIB | 242096001 | Insulation, I/container Frt |
|
$ 21.91 |
