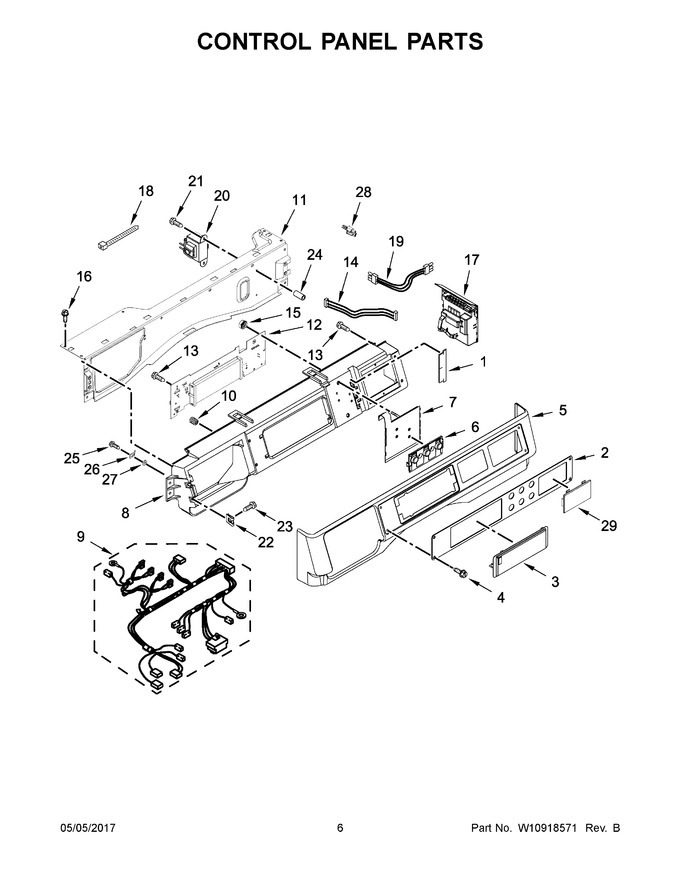

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10187276 | Seal, Console |
|
- | |||||
| 2 | W11131265 | Fascia (Replaces: W11104131) |
|
- | |||||
| 3 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 69.59 | |||||
| 4 | WPW10137457 | Screw (Replaces: W10137457) |
|
$ 7.85 | |||||
| 5 | W10779084 | Console, Outer |
|
$ 138.29 | |||||
| 6 | W10803340 | Push Button (Replaces: W10198147) |
|
$ 123.24 | |||||
| 7 | WPW10135255 | Switch, Membrane & Backer Plate (Replaces: W10135255) |
|
$ 219.41 | |||||
| 8 | W11028369 | Console, Inner (Replaces: W10829469) |
|
$ 336.35 | |||||
| 9 | W11050439 | Harness, Wiring (upper Main) (Replaces: W10696115) |
|
$ 191.36 | |||||
| 10 | WPW10189313 | Insert (Replaces: W10189313) |
|
$ 9.23 | |||||
| 11 | W10846488 | Bracket, Console |
|
$ 92.31 | |||||
| 12 | W11113911 | User Interface (Replaces: W10921621) |
|
$ 341.89 | |||||
| 13 | 489136 | Screw |
|
$ 10.80 | |||||
| 14 | W10155150 | Harness, Test |
|
$ 3.36 | |||||
| 15 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 9.23 | |||||
| 16 | WP489442 | Screw (Replaces: W10015090) |
|
Immediately | $ 11.49 | ||||
| 17 | W11803576 | Microcomputer, Machine Control (Replaces: W10921634) |
|
$ 1,032.68 | |||||
| 18 | WP2205813 | Tie, Cable (Replaces: 3429563) |
|
$ 8.11 | |||||
| 19 | W11700546 | Harness, Wiring (console Uic) (Replaces: W10330606) |
|
$ 19.38 | |||||
| 20 | WPW10131839 | Transformer (Replaces: W10131839) |
|
Immediately | $ 140.23 | ||||
| 21 | 8540329 | Screw |
|
- | |||||
| 22 | WP9781235 | Nut, "u (Replaces: 9781235) |
|
$ 12.56 | |||||
| 23 | WPW10131119 | Screw M4x13 (Replaces: W10131119) |
|
$ 7.30 | |||||
| 24 | W10018050 | Cap Plug |
|
- | |||||
| 25 | WP488234 | Screw (Replaces: 488234) |
|
$ 7.08 | |||||
| 26 | 3373818 | Tab, Grounding |
|
- | |||||
| 27 | W10189075 | Washer, Brass |
|
$ 19.13 | |||||
| 28 | W11129439 | Jumper, Switch Service/vault (Replaces: W10133282) |
|
$ 17.66 | |||||
| 29 | W11131294 | Cover, Card Reader (Replaces: W10213906) |
|
- | |||||
| 9A | W10689495 | Ccu To Cold Fill Valve (4 Pole) |
|
- | |||||
| 9B | W10689496 | Ccu To Hot Fill Valve (2 Pole) |
|
- |
