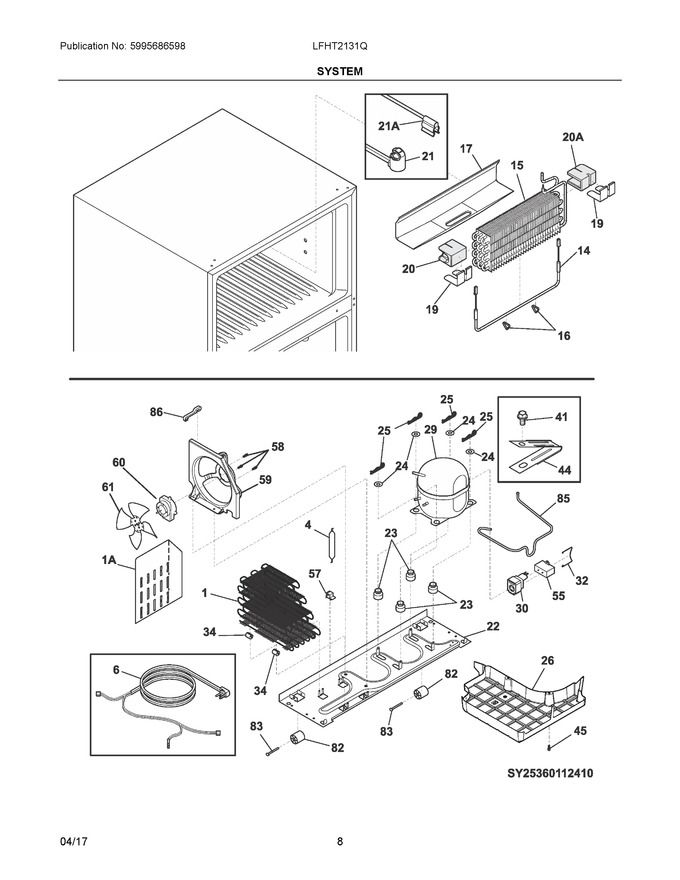

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241785405		Condenser, Dynamic				$ 166.95
4	5303305677		Dryer-filter   (Replaces: 242047603)			Immediately	$ 35.19
6	242213701		Harness, Wiring, Machine Compt., W/plug		Appelez-nous	-
14	242044021		Heater-defrost				$ 121.28
15	5303918274		Evaporator Kit			Immediately	$ 470.74
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 66.47
17	241801301		Trough-drain				$ 71.62
19	242320401		Shield, Heat, Evap Block				$ 74.99
20	5304527429		Block, Evaporator, Rh   (Replaces: 242238401)				$ 12.47
21	242303203		Thermostat, Safety, Defrost		Appelez-nous	-
22	241665504		Base-compressor				$ 88.99
23	218513300		Grommet-compr Mtg, (4)				$ 47.25
24	241812301		Washer-compr Mtg				$ 14.32
25	242037701		Clip-compressor Mtg				$ 3.15
26	807694801		Pan-defrost				$ 72.29
29	240550946		Compressor, W/o Electricals   (Replaces: 240550940)			Immediately	$ 440.73
30	241941005		Starter				$ 127.60
32	297030500		Clamp, Elec Cont Mtg, Compressor			Immediately	$ 13.39
34	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 22.05
41	240555002		Screw-#8-32 X 3/8			Immediately	$ 14.96
44	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
45	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
55	297286803		Capacitor-run			Immediately	$ 31.97
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240569201		Screw, 8-18 X 0.500		Appelez-nous	-
59	241946106		Shroud-cond Fan				$ 50.40
60	242018301		Motor-condenser Fan			Immediately	$ 153.95
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 24.43
82	240335202		Roller, Compressor Base, Rear				$ 23.63
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 39.27
85	5304502967		Tube-connector, Suction				$ 30.24
86	240409302		Spacer-cond Tube, Black				$ 74.99
1A	242213901		Deflector, Air				$ 21.91
20A	5304527430		Block, Evaporator, Lh   (Replaces: 242238301)				$ 12.75
21A	242290503		Thermistor, Temperature, Defrost		Appelez-nous	-
NI	5303918327		Heat Exchanger Kit, Suction Line				$ 337.68
NIA	240346701		Tape-foam Seal, Shroud				$ 33.08
NIA	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
NIB	240359403		Screw-fan Shroud, (2)				$ 4.21
NIB	218709101		Screw, Hex Head, 10-32 X 0.500				$ 7.09
