SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


04 - Optional Parts (not Included)

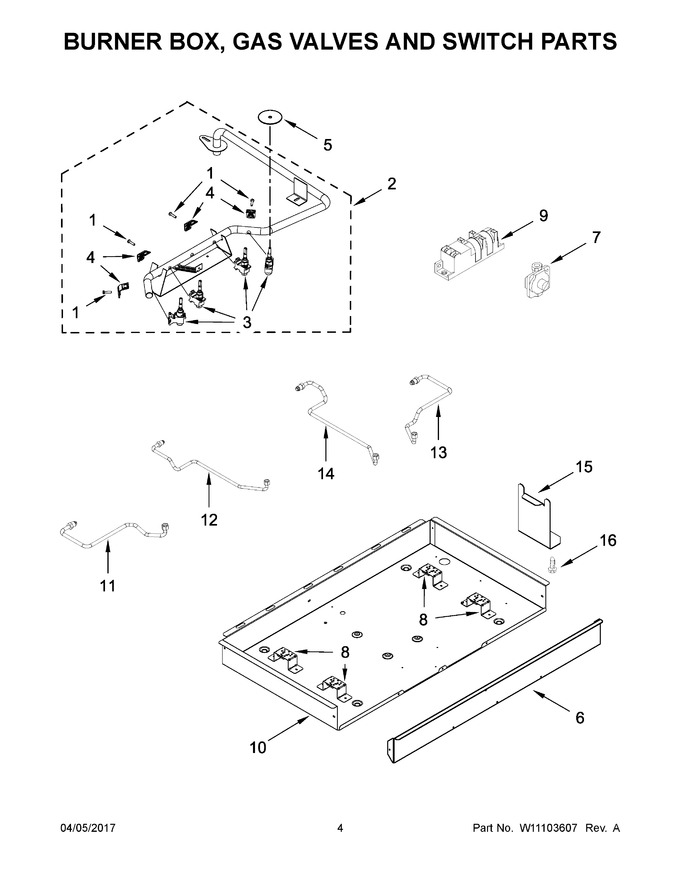

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw, Valve Bracket				$ 11.84
2	W10594394		Assembly,manifold				$ 318.78
3	W10597157		Valve, Single (left Front)				$ 263.49
4	8287055		Bracket, Single Valve				$ 76.46
5	W10140571		Seal, Switch Shaft				$ 7.70
6	W10721889		Panel, Front   (Replaces: W10614950)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 211.40
8	W10594429		Bracket, Orifice Holder				$ 23.33
9	W11693498		Module, Spark   (Replaces: W10475148)			Immediately	$ 105.71
10	N/P		Box, Burner (not Serviced)		Appelez-nous	-
11	W10566287		Tubing, Gas Burner (left Front)		Appelez-nous	-
12	W10566288		Tubing, Gas Burner (left Rear)		Appelez-nous	-
13	W10566290		Tubing, Gas Burner (right Front)		Appelez-nous	-
14	W10566289		Tubing, Gas Burner (right Rear)		Appelez-nous	-
15	WP3801F935-51		Bracket, Tie Down   (Replaces: 3801F935-51)				$ 43.27
16	WP7101P062-60		Screw   (Replaces: 7101P062-60)				$ 8.66
3A	W11256503		Valve, Single (left Rear & Right Rear)   (Replaces: W10594391)			Immediately	$ 275.34
3B	W10859922		Valve, Single (right Front)   (Replaces: W10594393)				$ 80.97

    View Diagram in Separate Window       Print Part List
