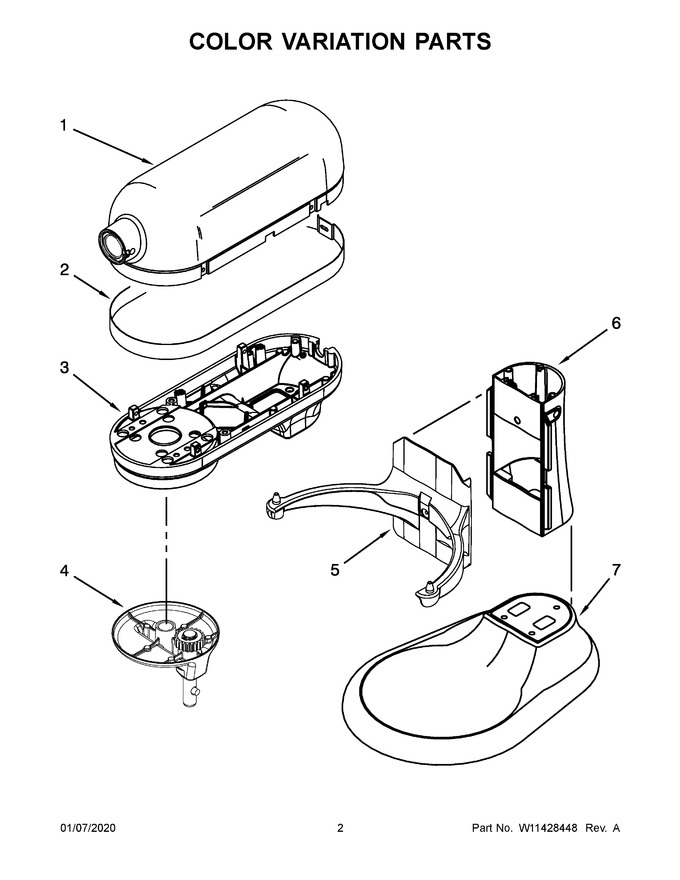

02 - Color Variation Parts


03 - Case, Gearing And Planetary Unit Parts


04 - Base And Pedestal Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9703311		Motor Housing (white)				$ 88.20
2	W10419455		Trim Band (dark Platinum)		Appelez-nous	-
3	W10234489		Lower Gearcase (white)		Appelez-nous	-
4	WPW10420628		Planetary (white)   (Replaces: W10420628)				$ 64.21
5	9703674		Bowl Support And Pins (white)				$ 74.91
6	W10451002		Column And Pins (white)		Appelez-nous	-
7	9703690		Base And Foot Assembly (white)		Appelez-nous	-
1A	9705300		Motor Housing (empire Red)				$ 88.20
3A	W10410014		Lower Gearcase (empire Red)				$ 66.24
4A	WPW10419426		Planetary (empire Red)   (Replaces: W10419426)				$ 66.18
5A	9705360		Bowl Support And Pins (empire Red)		Appelez-nous	-
6A	WPW10451578		Column And Pins (empire Red)   (Replaces: W10451578)				$ 98.88
7A	9705348		Base And Foot Assembly (empire Red)		Appelez-nous	-
