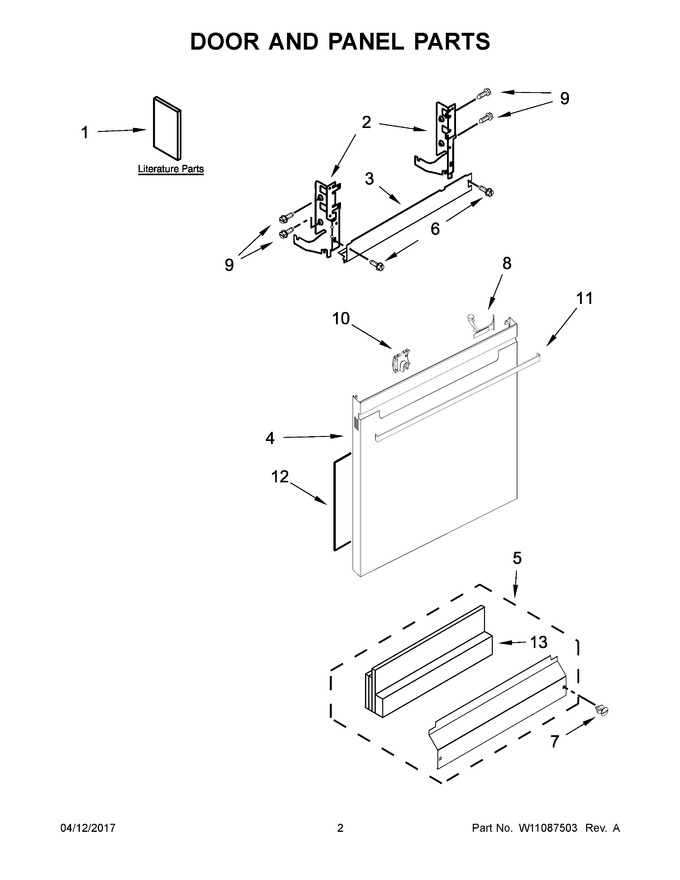

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10806906 | Installation Instructions |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | W10850371 | Barrier, Vapor (Replaces: W10844384) |
|
Immediately | $ 32.88 | ||||
| 4 | W11087926 | Front Panel (includes 8, 10, 11 & 12) (black) (Replaces: W10860939) |
|
$ 396.60 | |||||
| 5 | WPW10526114 | Access Panel (black) (Replaces: W10526114) |
|
Immediately | $ 149.53 | ||||
| 6 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 7 | WPW10503548 | Fastener (black) (Replaces: W10503548) |
|
Immediately | $ 30.39 | ||||
| 8 | W10901145 | Light Pipe (Replaces: W10854504) |
|
$ 77.23 | |||||
| 9 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 10 | W10692757 | Barrel Nut, Front Panel |
|
$ 16.01 | |||||
| 11 | W11087930 | Trim, Handle (Replaces: W10865090) |
|
$ 134.16 | |||||
| 12 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 13 | W10831329 | Insulation, Four Layer (Replaces: W10518815) |
|
Immediately | $ 43.30 | ||||
| 1A | W10900099 | Energy Guide |
|
- | |||||
| 1B | W10901523 | Use & Care Guide |
|
- | |||||
| 1C | W10904612 | Tech Sheet |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 4A | W11087927 | Front Panel (includes 8, 10, 11 & 12) (white) (Replaces: W10860940) |
|
$ 390.40 | |||||
| 4B | W10860941 | Front Panel (includes 8, 10, 11 & 12) (stainless) |
|
- | |||||
| 4C | W11087929 | Front Panel (includes 8, 10, 11 & 12) (black Stainless) (Replaces: W11031730) |
|
Immediately | $ 466.29 | ||||
| 5A | WPW10526115 | Access Panel (white) (Replaces: W10526115) |
|
$ 175.17 | |||||
| 7A | WPW10503549 | Fastener (white) (Replaces: W10503549) |
|
Immediately | $ 7.77 |
