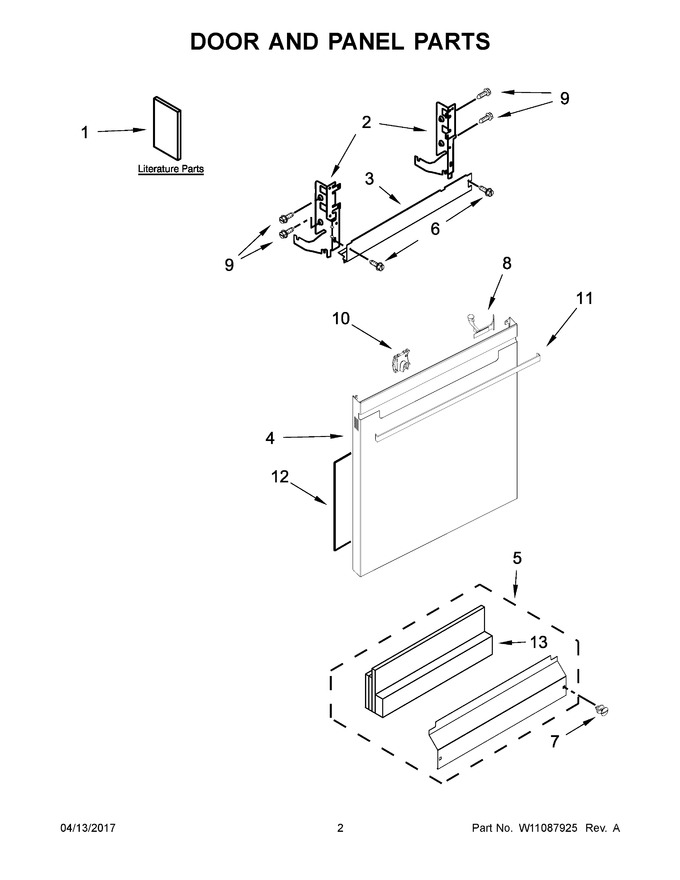

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806906		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 32.88
4	W11088097		Front Panel (includes 8, 10, 11 & 12) (stainless)   (Replaces: W11028374)			Immediately	$ 419.61
5	WPW10526114		Access Panel (black)   (Replaces: W10526114)			Immediately	$ 149.53
6	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
7	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
8	W10901145		Light Pipe   (Replaces: W10854504)				$ 77.23
9	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
10	W10692757		Barrel Nut, Front Panel				$ 16.01
11	W11087930		Trim, Handle   (Replaces: W10865090)				$ 134.16
12	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
13	W10831329		Insulation, Four Layer   (Replaces: W10518815)			Immediately	$ 43.30
1A	W10900099		Energy Guide		Appelez-nous	-
1B	W10901523		Use & Care Guide		Appelez-nous	-
1C	W10904612		Tech Sheet		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
