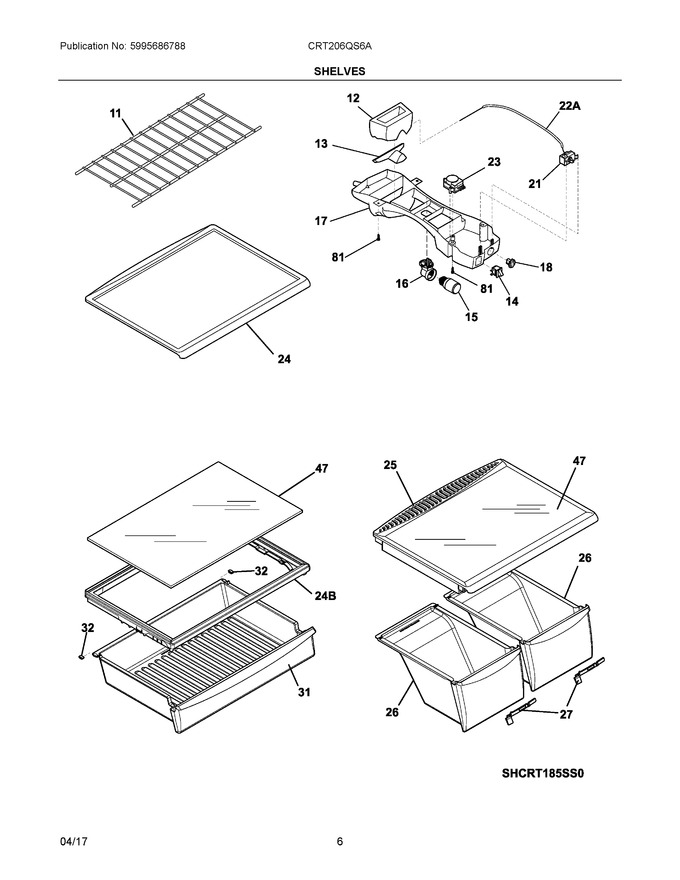

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358009		Shelf, Freezer				$ 82.45
12	240545901		Diffuser-air, Top				$ 77.96
13	240362601		Diffuser, Air, Bottom			Immediately	$ 46.46
14	241554901		Switch-light/lamp				$ 78.75
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 22.75
16	241559801		Socket-light				$ 80.75
17	240368105		Box-control, Front			Immediately	$ 144.93
18	240360801		Knob, Temp Control				$ 43.95
21	241537103		Control-temperature			Immediately	$ 80.34
23	241705102		Timer-defrost			Immediately	$ 126.12
24	240358903		Shelf, Fixed, Spill Safe		Appelez-nous	-
25	242201803		Cover-crisper Pan				$ 123.17
26	242218506		Pan, Crisper, (2), W/humid Cntl				$ 133.09
27	242215901		Slide, Humidity Contrl				$ 21.06
31	242322203		Meat Pan, Fw Pantry, W/slide Clips				$ 287.69
32	240349801		Clip-slide, Pan				$ 22.75
47	240350609		Insert-pan Cover, Glass				$ 180.33
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White				$ 10.11
24B	242205404		Cover, Deli Pan, Full Width   (Replaces: 242205402)				$ 128.92
NI	5304507759		Label-energy/energuide		Appelez-nous	-
NIA	218743613		Tape, Aluminum, 3" X 7		Appelez-nous	-
NIA	241705801		Spacer-shelf				$ 7.88
NIBA	240362101		Clip-slide, Cover				$ 52.25
NIBB	241872203		Support-beam				$ 59.83
