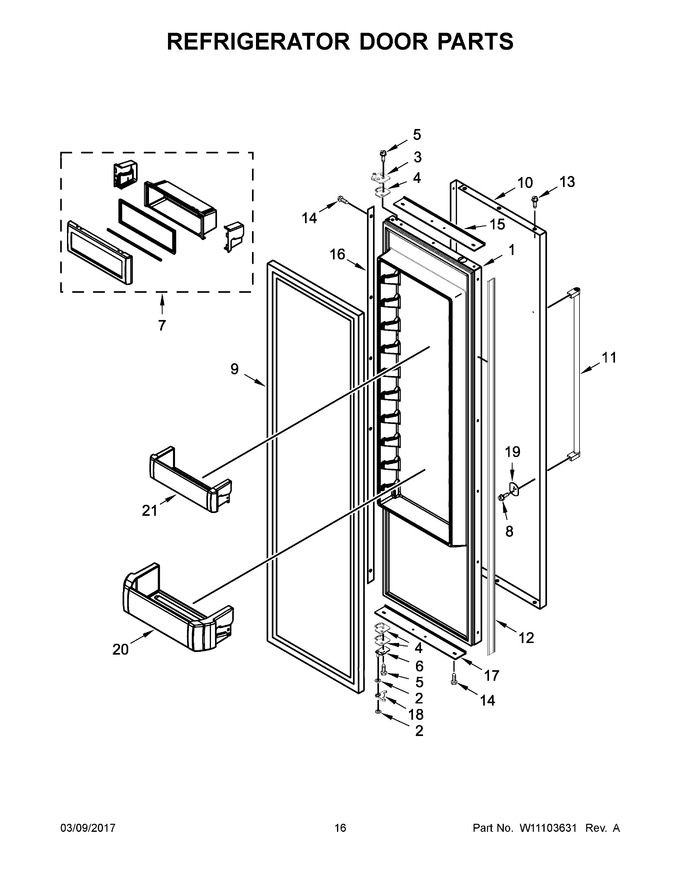

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10761878		Door, Refrigerator		Appelez-nous	-
2	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
3	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 108.07
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	2302878		Assembly, Hinge (bottom)			Immediately	$ 91.01
7	W11448696		Assembly, Utility Bin   (Replaces: W10798551)				$ 153.99
8	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
9	W11627244		Gasket, Door (grey)   (Replaces: W10764832)				$ 377.97
10	W11797630		Skin, Door (stainless)   (Replaces: W10756461)		Appelez-nous	-
11	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 216.71
12	W10758113		Spacer, Handle Side Door		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
15	W10761896		Spacer, Door Skin (top)		Appelez-nous	-
16	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
17	W10761936		Spacer, Door Skin Bottom		Appelez-nous	-
18	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
19	W10127710		Plate, Handle Door			Immediately	$ 25.94
20	W10323747		Bin, Gallon Door				$ 145.36
21	W10323599		Bin, Shallow Door				$ 146.61

    View Diagram in Separate Window       Print Part List
